group "FacilityLoanContractDetails.model"
Namespace:
http://www.fpml.org/FpML-5/confirmation
Content:
6 elements
Defined:
globally in fpml-loan-5-10.xsd; see XML source
Includes:
definitions of 4 elements
Used:
at 2 locations

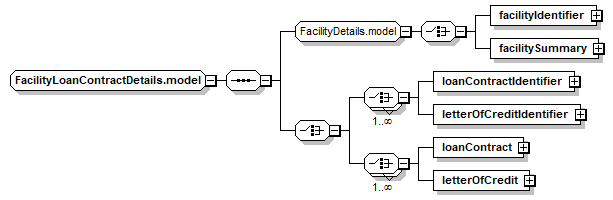

Content Model Diagram
Complex Content Model
(facilityIdentifier | facilitySummary), ((loanContractIdentifier | letterOfCreditIdentifier)+ | (loanContract | letterOfCredit)+)
Content Model Elements (6):
facilityIdentifier (defined in FacilityDetails.model group),
facilitySummary,
letterOfCredit (defined in FacilityLoanContractDetails.model group),
letterOfCreditIdentifier (defined in FacilityLoanContractDetails.model group),
loanContract (defined in FacilityLoanContractDetails.model group),
loanContractIdentifier
Known Usage Locations
Annotation
A model used to reference a facility by either identifier or summary, within various notifications.
XML Source (w/o annotations (7); see within schema source)
<xsd:group name="FacilityLoanContractDetails.model">
<xsd:sequence>
<xsd:group ref="FacilityDetails.model"/>
<xsd:choice>
<xsd:choice maxOccurs="unbounded">
<xsd:element name="loanContractIdentifier" type="ContractIdentifier"/>
<xsd:element name="letterOfCreditIdentifier" type="ContractIdentifier"/>
</xsd:choice>
<xsd:choice maxOccurs="unbounded">
<xsd:element name="loanContract" type="LoanContract"/>
<xsd:element name="letterOfCredit" type="LetterOfCredit"/>
</xsd:choice>
</xsd:choice>
</xsd:sequence>
</xsd:group>
Content Element Detail (all declarations; defined within this component only; 4/6)
letterOfCredit
Type:
LetterOfCredit, complex content
A collection of letter of credits.
XML Source (w/o annotations (1); see within schema source)
<xsd:element name="letterOfCredit" type="LetterOfCredit"/>
letterOfCreditIdentifier
Type:
ContractIdentifier, complex content
A collection of letter of credits.
XML Source (w/o annotations (1); see within schema source)
<xsd:element name="letterOfCreditIdentifier" type="ContractIdentifier"/>
loanContract
Type:
LoanContract, complex content
A collection of loan contracts.
XML Source (w/o annotations (1); see within schema source)
<xsd:element name="loanContract" type="LoanContract"/>
loanContractIdentifier
Type:
ContractIdentifier, complex content
A collection of loan contracts.
XML Source (w/o annotations (1); see within schema source)
<xsd:element name="loanContractIdentifier" type="ContractIdentifier"/>
