element <physicalExercise> (local)
Namespace:
http://www.fpml.org/FpML-5/reporting
Type:
CommodityPhysicalExercise
Content:
complex, 5 elements
Defined:
locally within CommodityPhysicalOption.model group in fpml-com-5-10.xsd; see XML source

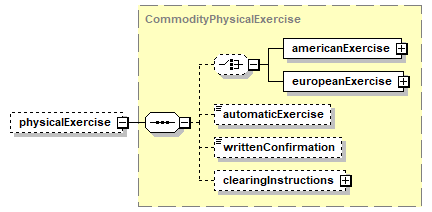

Content Model Diagram
XML Representation Summary
<physicalExercise>

Content:
(americanExercise | europeanExercise)?, automaticExercise?, writtenConfirmation?, clearingInstructions?
</physicalExercise>
Content model elements (5):
americanExercise (defined in CommodityPhysicalExercise complexType),
automaticExercise (defined in CommodityPhysicalExercise complexType),
clearingInstructions (defined in CommodityPhysicalExercise complexType),
europeanExercise (defined in CommodityPhysicalExercise complexType),
writtenConfirmation (defined in CommodityPhysicalExercise complexType)
Included in content model of elements (1):
commodityOption
Annotation
The parameters for defining how the commodity option can be exercised into a physical transaction.
XML Source (w/o annotations (1); see within schema source)
<xsd:element minOccurs="0" name="physicalExercise" type="CommodityPhysicalExercise"/>
