element <commodityOption> (global)
Namespace:
http://www.fpml.org/FpML-5/reporting
Type:
CommodityOption
Content:
complex, 1 attribute, 45 elements
Subst.Gr:
may substitute for element product
Defined:
globally in fpml-com-5-10.xsd; see XML source
Used:
never

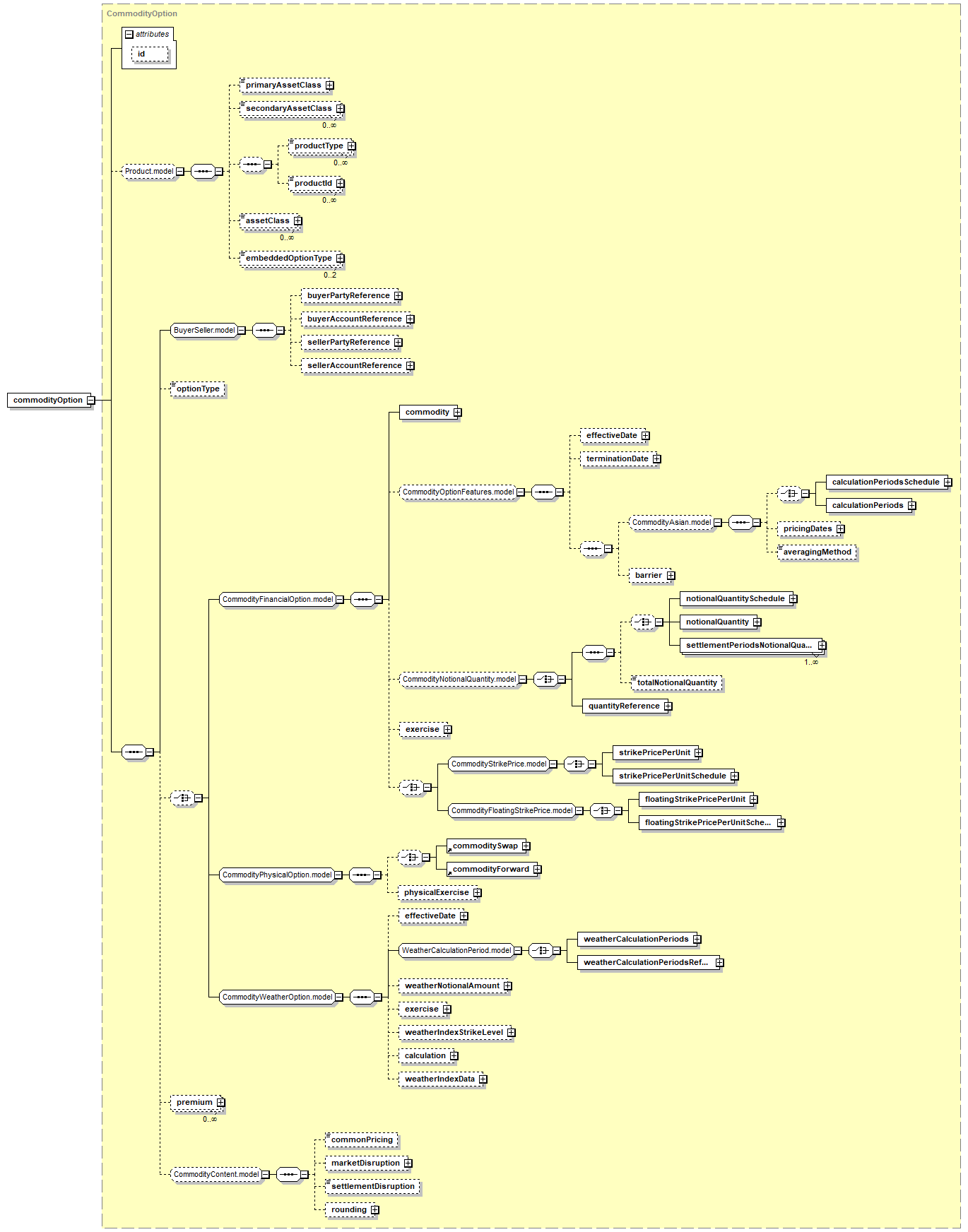

Content Model Diagram
XML Representation Summary
<commodityOption

id
 =
xsd:ID

>

Content:
(primaryAssetClass?, secondaryAssetClass*, (productType*, productId*)?, assetClass*, embeddedOptionType[0..2])?, buyerPartyReference?, buyerAccountReference?, sellerPartyReference?, sellerAccountReference?, optionType?, ((commodity, (effectiveDate?, terminationDate?, (((calculationPeriodsSchedule | calculationPeriods)?, pricingDates?, averagingMethod?)?, barrier?)?)?, (((notionalQuantitySchedule | notionalQuantity | settlementPeriodsNotionalQuantity+)?, totalNotionalQuantity?) | quantityReference)?, exercise?, (strikePricePerUnit | strikePricePerUnitSchedule | floatingStrikePricePerUnit | floatingStrikePricePerUnitSchedule)?) | ((commoditySwap | commodityForward)?, physicalExercise?) | (effectiveDate?, (weatherCalculationPeriods | weatherCalculationPeriodsReference), weatherNotionalAmount?, exercise?, weatherIndexStrikeLevel?, calculation?, weatherIndexData?))?, premium*, (commonPricing?, marketDisruption?, settlementDisruption?, rounding?)?
</commodityOption>
Content model elements (45):
assetClass (defined in Product.model group),
averagingMethod (defined in CommodityAsian.model group),
barrier (in commodityOption),
buyerAccountReference,
buyerPartyReference (defined in BuyerSeller.model group),
calculation (in commodityOption),
calculationPeriods (defined in CommodityAsian.model group),
calculationPeriodsSchedule (defined in CommodityAsian.model group),
commodity (in commodityOption),
commodityForward,
commoditySwap,
commonPricing,
effectiveDate (in commodityOption),
effectiveDate (in commodityOption),
embeddedOptionType,
exercise (in commodityOption),
exercise (in commodityOption),
floatingStrikePricePerUnit,
floatingStrikePricePerUnitSchedule,
marketDisruption (defined in CommodityContent.model group),
notionalQuantity (defined in CommodityNotionalQuantity.model group),
notionalQuantitySchedule,
optionType (in commodityOption),
physicalExercise (in commodityOption),
premium (in commodityOption),
pricingDates (defined in CommodityAsian.model group),
primaryAssetClass (defined in Product.model group),
productId (defined in Product.model group),
productType (defined in Product.model group),
quantityReference (defined in CommodityNotionalQuantity.model group),
rounding (defined in CommodityContent.model group),
secondaryAssetClass (defined in Product.model group),
sellerAccountReference,
sellerPartyReference (defined in BuyerSeller.model group),
settlementDisruption,
settlementPeriodsNotionalQuantity,
strikePricePerUnit,
strikePricePerUnitSchedule,
terminationDate (in commodityOption),
totalNotionalQuantity (defined in CommodityNotionalQuantity.model group),
weatherCalculationPeriods,
weatherCalculationPeriodsReference,
weatherIndexData (in commodityOption),
weatherIndexStrikeLevel,
weatherNotionalAmount (in commodityOption)
May be included in elements by substitutions (26):
oldTrade (defined in OldTrade.model group),
oldTrade (defined in TradeChangeContent complexType),
originalTrade (defined in OptionExercise complexType),
originalTrade (defined in OptionExpiry complexType),
originalTrade (defined in TradeChangeBase complexType),
physicalSettlement (defined in OptionExercise complexType),
resultingTrade (defined in PhysicalSettlement complexType),
resultingTrade (defined in TradeChangeBase complexType),
trade (defined in DataDocument complexType),
trade (defined in Events.model group),
trade (defined in PositionConstituent complexType),
trade (defined in TradeAmendmentContent complexType),
trade (defined in TradeChangeContent complexType),
trade (defined in TradePackage complexType),
trade (defined in TradeValuationItem complexType),
trade (defined in Withdrawal complexType),
Annotation
Defines a commodity option product. The product support for financially-settled exercises or exercise into physical forward contracts written on precious and non-precious metals. options in FpML is based on the creation of a 'commodityOption' product. The product references the 'commodity' underlyer in order to support the underlying asset of the option.
XML Source (w/o annotations (1); see within schema source)
<xsd:element name="commodityOption" substitutionGroup="product" type="CommodityOption"/>
