element <calculation> (local)
Namespace:
http://www.fpml.org/FpML-5/reporting
Type:
WeatherLegCalculation
Content:
complex, 9 elements
Defined:
locally within CommodityWeatherOption.model group in fpml-com-5-10.xsd; see XML source

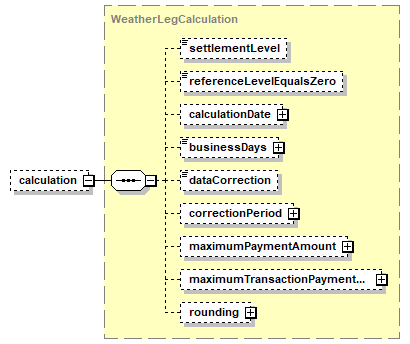

Content Model Diagram
XML Representation Summary
<calculation>

Content:
settlementLevel?, referenceLevelEqualsZero?, calculationDate?, businessDays?, dataCorrection?, correctionPeriod?, maximumPaymentAmount?, maximumTransactionPaymentAmount?, rounding?
</calculation>
Content model elements (9):
businessDays (defined in WeatherLegCalculation complexType),
calculationDate (defined in WeatherLegCalculation complexType),
correctionPeriod,
dataCorrection,
maximumPaymentAmount,
maximumTransactionPaymentAmount,
referenceLevelEqualsZero,
rounding (defined in WeatherLegCalculation complexType),
settlementLevel
Included in content model of elements (1):
commodityOption
Annotation
Contains parameters which figure in the calculation of payments on a Weather Index Option.
XML Source (w/o annotations (1); see within schema source)
<xsd:element minOccurs="0" name="calculation" type="WeatherLegCalculation"/>
