group "IdAndTradeCashflows.model"
Namespace:
http://www.fpml.org/FpML-5/reporting
Content:
4 elements
Defined:
globally in fpml-reconciliation-5-10.xsd; see XML source
Includes:
definition of 1 element
Used:
at 2 locations

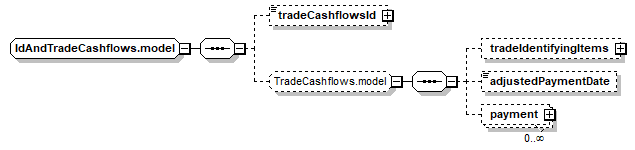

Content Model Diagram
Complex Content Model
tradeCashflowsId?, (tradeIdentifyingItems?, adjustedPaymentDate?, payment*)?
Content Model Elements (4):
adjustedPaymentDate (defined in TradeCashflows.model group),
payment (defined in TradeCashflows.model group),
tradeCashflowsId (defined in IdAndTradeCashflows.model group),
tradeIdentifyingItems (defined in TradeCashflows.model group)
Known Usage Locations
XML Source (w/o annotations (1); see within schema source)
<xsd:group name="IdAndTradeCashflows.model">
<xsd:sequence>
<xsd:element minOccurs="0" name="tradeCashflowsId" type="TradeCashflowsId"/>
<xsd:group minOccurs="0" ref="TradeCashflows.model"/>
</xsd:sequence>
</xsd:group>
Content Element Detail (all declarations; defined within this component only; 1/4)
tradeCashflowsId
Type:
TradeCashflowsId, simple content
Unique identifier assigned by either party to a set of cashflows.
Simple Content
xsd:normalizedString
maxLength:
255
minLength:
1
XML Source (w/o annotations (1); see within schema source)
<xsd:element minOccurs="0" name="tradeCashflowsId" type="TradeCashflowsId"/>
