element <exposure> (local)
Namespace:
http://www.fpml.org/FpML-5/reporting
Type:
ReportedExposure
Content:
complex, 29 elements
Defined:
locally within ReportedExposure complexType in fpml-reporting-5-10.xsd; see XML source

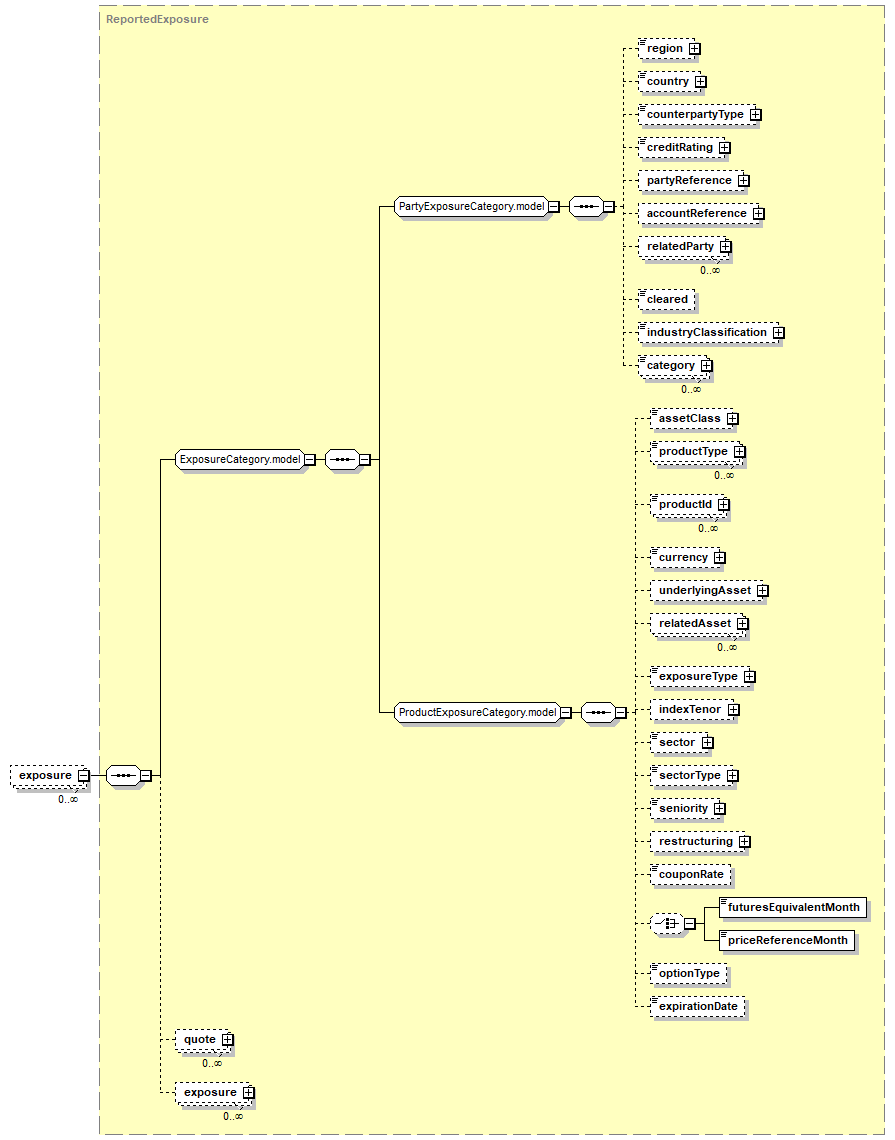

Content Model Diagram
XML Representation Summary
<exposure>

Content:
region?, country?, counterpartyType?, creditRating?, partyReference?, accountReference?, relatedParty*, cleared?, industryClassification?, category*, assetClass?, productType*, productId*, currency?, underlyingAsset?, relatedAsset*, exposureType?, indexTenor?, sector?, sectorType?, seniority?, restructuring?, couponRate?, (futuresEquivalentMonth | priceReferenceMonth)?, optionType?, expirationDate?, quote*, exposure*
</exposure>
Content model elements (29):
accountReference (defined in PartyExposureCategory.model group),
assetClass (defined in ProductExposureCategory.model group),
category (defined in PartyExposureCategory.model group),
cleared (defined in PartyExposureCategory.model group),
counterpartyType,
country (defined in PartyExposureCategory.model group),
couponRate (defined in ProductExposureCategory.model group),
creditRating (defined in PartyExposureCategory.model group),
currency (defined in ProductExposureCategory.model group),
expirationDate (defined in ProductExposureCategory.model group),
exposure (defined in ReportedExposure complexType),
exposureType,
futuresEquivalentMonth,
indexTenor (defined in ProductExposureCategory.model group),
industryClassification,
optionType (defined in ProductExposureCategory.model group),
partyReference (defined in PartyExposureCategory.model group),
priceReferenceMonth,
productId (defined in ProductExposureCategory.model group),
productType (defined in ProductExposureCategory.model group),
quote (defined in ReportedExposure complexType),
region (defined in PartyExposureCategory.model group),
relatedAsset,
relatedParty (defined in PartyExposureCategory.model group),
restructuring (defined in ProductExposureCategory.model group),
sector (defined in ProductExposureCategory.model group),
sectorType,
seniority (defined in ProductExposureCategory.model group),
underlyingAsset (defined in ProductExposureCategory.model group)
Included in content model of elements (2):
exposure (defined in ReportedExposure complexType),
Annotation
Sub-divisions of this total expsoure.
XML Source (w/o annotations (1); see within schema source)
<xsd:element maxOccurs="unbounded" minOccurs="0" name="exposure" type="ReportedExposure"/>
