group "ReportableEvents.model"
Namespace:
http://www.fpml.org/FpML-5/reporting
Content:
15 elements
Defined:
globally in fpml-reporting-5-10.xsd; see XML source
Includes:
definition of 1 element
Used:
at 1 location

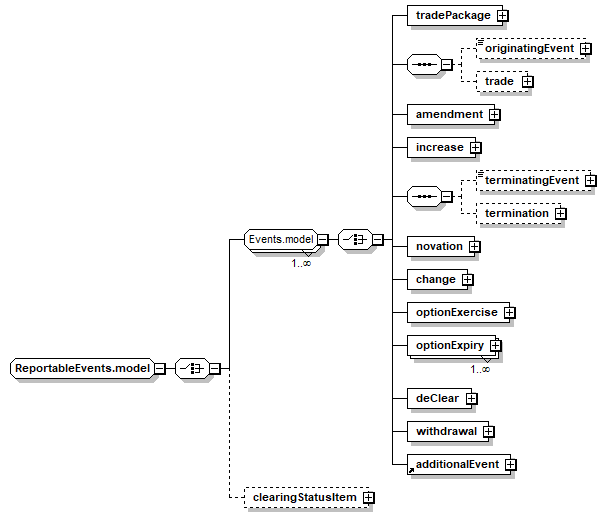

Content Model Diagram
Complex Content Model
(tradePackage | (originatingEvent?, trade?) | amendment | increase | (terminatingEvent?, termination?) | novation | change | optionExercise | optionExpiry+ | deClear | withdrawal | additionalEvent)+ | clearingStatusItem?
Content Model Elements (15):
amendment (defined in Events.model group),
change (defined in Events.model group),
increase (defined in Events.model group),
novation (defined in Events.model group),
optionExercise (defined in Events.model group),
optionExpiry (defined in Events.model group),
originatingEvent (defined in Events.model group),
terminatingEvent (defined in Events.model group),
termination (defined in Events.model group),
trade (defined in Events.model group),
tradePackage (defined in Events.model group),
withdrawal (defined in Events.model group)
Known Usage Locations
XML Source (w/o annotations (1); see within schema source)
<xsd:group name="ReportableEvents.model">
<xsd:choice>
<xsd:group maxOccurs="unbounded" ref="Events.model"/>
<xsd:element minOccurs="0" name="clearingStatusItem" type="ClearingStatusItem"/>
</xsd:choice>
</xsd:group>
Content Element Detail (all declarations; defined within this component only; 1/15)
clearingStatusItem
Type:
ClearingStatusItem, complex content
Describes the status of the clearing process relating to the identified trade.
XML Source (w/o annotations (1); see within schema source)
<xsd:element minOccurs="0" name="clearingStatusItem" type="ClearingStatusItem"/>
