group "CommodityCalculationPeriodsPointer.model"
Namespace:
http://www.fpml.org/FpML-5/confirmation
Content:
3 elements
Defined:
globally in fpml-com-5-11.xsd; see XML source
Includes:
definitions of 3 elements
Used:
at 10 locations

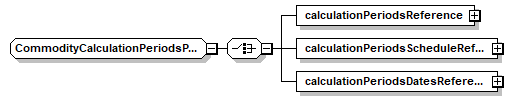

Content Model Diagram
Complex Content Model
calculationPeriodsReference | calculationPeriodsScheduleReference | calculationPeriodsDatesReference
Content Model Elements (3):
calculationPeriodsDatesReference, calculationPeriodsReference, calculationPeriodsScheduleReference
Known Usage Locations
Annotation
Model group enables users to reference a Calculation Periods schedule in the form of a series of actual dates in a calculationPeriods container or in the form of a parameterized schedule in a calculationPeriodsSchedule container.
XML Source (w/o annotations (4); see within schema source)
<xsd:group name="CommodityCalculationPeriodsPointer.model">
<xsd:choice>
<xsd:element name="calculationPeriodsReference" type="CalculationPeriodsReference"/>
</xsd:choice>
</xsd:group>
Content Element Detail (all declarations; defined within this component only; 3/3)
calculationPeriodsDatesReference
Type:
CalculationPeriodsDatesReference, empty content
A pointer style reference to single-day-duration Calculation Periods defined on another leg.
XML Source (w/o annotations (1); see within schema source)
calculationPeriodsReference
Type:
CalculationPeriodsReference, empty content
A pointer style reference to the Calculation Periods defined on another leg.
XML Source (w/o annotations (1); see within schema source)
calculationPeriodsScheduleReference
Type:
CalculationPeriodsScheduleReference, empty content
A pointer style reference to the Calculation Periods Schedule defined on another leg.
XML Source (w/o annotations (1); see within schema source)
