group "GenericCommodityAttributes.model"
Namespace:
http://www.fpml.org/FpML-5/confirmation
Content:
7 elements
Defined:
globally in fpml-generic-5-11.xsd; see XML source
Includes:
definitions of 7 elements
Used:
at 1 location

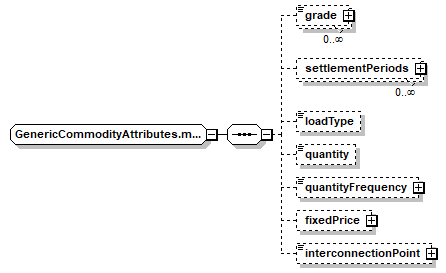

Content Model Diagram
Complex Content Model
grade*, settlementPeriods*, loadType?, quantity?, quantityFrequency?, fixedPrice?, interconnectionPoint?
Content Model Elements (7):
Known Usage Locations
XML Source (w/o annotations (7); see within schema source)
<xsd:group name="GenericCommodityAttributes.model">
<xsd:sequence>
<xsd:element maxOccurs="unbounded" minOccurs="0" name="grade" type="GenericCommodityGrade"/>
<xsd:element maxOccurs="unbounded" minOccurs="0" name="settlementPeriods" type="GenericCommodityDeliveryPeriod"/>
<xsd:element minOccurs="0" name="loadType" type="LoadTypeEnum"/>
<xsd:element minOccurs="0" name="quantity" type="xsd:decimal"/>
<xsd:element minOccurs="0" name="quantityFrequency" type="CommodityQuantityFrequency"/>
<xsd:element minOccurs="0" name="fixedPrice" type="FixedPrice"/>
<xsd:element minOccurs="0" name="interconnectionPoint" type="InterconnectionPoint"/>
</xsd:sequence>
</xsd:group>
Content Element Detail (all declarations; defined within this component only; 7/7)
fixedPrice
Type:
FixedPrice, complex content
Fixed price on which fixed payments are based.
XML Source (w/o annotations (1); see within schema source)
<xsd:element minOccurs="0" name="fixedPrice" type="FixedPrice"/>
grade
Type:
GenericCommodityGrade, simple content
The grade(s) of material which can be delivered in seller's option.
Simple Content
xsd:normalizedString
maxLength:
255
minLength:
0
XML Source (w/o annotations (1); see within schema source)
<xsd:element maxOccurs="unbounded" minOccurs="0" name="grade" type="GenericCommodityGrade"/>
interconnectionPoint
Type:
InterconnectionPoint, simple content
Identification of the border(s) or border point(s) of a transportation contract.
Simple Content
xsd:normalizedString
maxLength:
255
minLength:
0
XML Source (w/o annotations (1); see within schema source)
<xsd:element minOccurs="0" name="interconnectionPoint" type="InterconnectionPoint"/>
loadType
Type:
LoadTypeEnum, simple content
LoadType is a summary of the full description of the settlement periods with respect to the region. Used for describing Electricity delivery schedules (e.g. Base, Peak, Off-Peak, Custom).
Simple Content
enumeration of xsd:token
Enumeration:
"Base"
 -
Base
"Peak"
 -
Peak
"OffPeak"
 -
Off-Peak
"BlockHours"
 -
Block Hours
"Custom"
 -
Anything that does not fall under the predefined standard categories
XML Source (w/o annotations (1); see within schema source)
<xsd:element minOccurs="0" name="loadType" type="LoadTypeEnum"/>
quantity
Type:
xsd:decimal, predefined, simple content
The periodic quantity. Used in conjunction with the quantityFrequency to define quantity per period.
XML Source (w/o annotations (1); see within schema source)
<xsd:element minOccurs="0" name="quantity" type="xsd:decimal"/>
quantityFrequency
Type:
CommodityQuantityFrequency, simple content
The frequency at which the Notional Quantity is deemed to apply for purposes of calculating the Total Notional Quantity.
Simple Content
xsd:normalizedString
maxLength:
255
minLength:
0
XML Source (w/o annotations (1); see within schema source)
<xsd:element minOccurs="0" name="quantityFrequency" type="CommodityQuantityFrequency"/>
settlementPeriods
Type:
GenericCommodityDeliveryPeriod, complex content
Specifies the delivery time periods (normally used for electricity swaps).
XML Source (w/o annotations (1); see within schema source)
<xsd:element maxOccurs="unbounded" minOccurs="0" name="settlementPeriods" type="GenericCommodityDeliveryPeriod"/>
