element <observation> (local)
Namespace:
http://www.fpml.org/FpML-5/confirmation
Type:
ObservationEvent
Content:
complex, 6 elements
Defined:
locally within PostTradeEventsBase.model group in fpml-business-events-5-11.xsd; see XML source

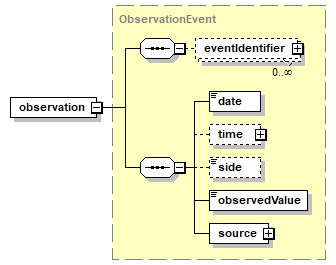

Content Model Diagram
XML Representation Summary
<observation>

Content:
eventIdentifier*, date, time?, side?, observedValue, source
</observation>
Content model elements (6):
date (in observation defined in PostTradeEventsBase.model group),
eventIdentifier (defined in AbstractEvent complexType),
observedValue,
side (in observation defined in PostTradeEventsBase.model group),
source (in observation defined in PostTradeEventsBase.model group),
time (in observation defined in PostTradeEventsBase.model group)
Included in content model of elements (13):
allegedEvent, assertedEvent, confirmationAgreed, confirmationDisputed, consentGranted, consentRefused, executionAdvice, executionAdviceRetracted, proposedMatch, requestConfirmation, requestConfirmationRetracted, requestConsent, requestConsentRetracted
XML Source (see within schema source)
<xsd:element name="observation" type="ObservationEvent"/>
