complexType "CorrectableRequestMessage"

Namespace:	http://www.fpml.org/FpML-5/confirmation
Content:	complex, 3 attributes, 8 elements
Defined:	globally in fpml-msg-5-11.xsd; see XML source
Includes:	definition of 1 element
Used:	at 18 locations

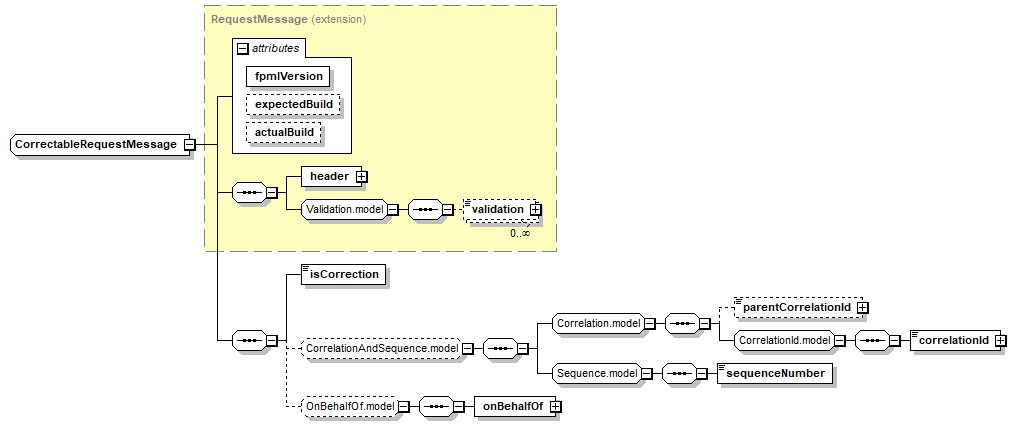

Content Model Diagram

XML Representation Summary

<...

fpmlVersion	=	xsd:token
expectedBuild	=	xsd:positiveInteger
actualBuild	=	"3"

Content:

header, validation*, isCorrection, (parentCorrelationId?, correlationId, sequenceNumber)?, onBehalfOf?

</...>

Content Model Elements (8):

correlationId,

header (defined in RequestMessage complexType),

isCorrection,

onBehalfOf (defined in OnBehalfOf.model group),

parentCorrelationId,

sequenceNumber (defined in Sequence.model group),

validation (defined in Validation.model group),

validation (defined in Validation.model group)

Known Direct Subtypes (18):

AbstractLoanAllocationNotification, AbstractLoanPartyProfileStatement, AbstractLoanStatement, AbstractLoanTradeNotification, AbstractServicingNotification, CreditEventNotification, ExecutionAdvice, ExecutionNotification, MaturityNotification, RequestAllocation, RequestClearing, RequestClearingEligibility, RequestCollateralAllocation, RequestConfirmation, RequestConsent, RequestExecution, RequestTradeReferenceInformationUpdate, TradeChangeAdvice

Known Indirect Subtypes (13):

AbstractContractNotification, AbstractFacilityNotification, DealStatement, FacilityNotification, FacilityPositionStatement, FacilityStatement, LcNotification, LoanAllocationNotification, LoanBulkServicingNotification, LoanContractNotification, LoanPartyProfileStatement, LoanTradeNotification, OutstandingContractsStatement

All Direct / Indirect Based Elements (25):

Known Usage Locations

In derivations of other global types (18):

AbstractLoanAllocationNotification (as extension base),

AbstractLoanPartyProfileStatement (as extension base),

AbstractLoanStatement (as extension base),

AbstractLoanTradeNotification (as extension base),

AbstractServicingNotification (as extension base),

CreditEventNotification (as extension base),

ExecutionAdvice (as extension base),

ExecutionNotification (as extension base),

MaturityNotification (as extension base),

RequestAllocation (as extension base),

RequestClearing (as extension base),

RequestClearingEligibility (as extension base),

RequestCollateralAllocation (as extension base),

RequestConfirmation (as extension base),

RequestConsent (as extension base),

RequestExecution (as extension base),

RequestTradeReferenceInformationUpdate (as extension base),

TradeChangeAdvice (as extension base)

Annotation

A type defining the content model for a request message that can be subsequently corrected or retracted.

Type Definition Detail

Type Derivation Tree

Document (extension)

Message (extension)

RequestMessage (extension)

CorrectableRequestMessage

XML Source (w/o annotations (3); see within schema source)

<xsd:complexType name="CorrectableRequestMessage">

<xsd:complexContent>

<xsd:extension base="RequestMessage">

<xsd:sequence>

<xsd:element name="isCorrection" type="xsd:boolean"/>

<xsd:group minOccurs="0" ref="CorrelationAndSequence.model"/>

<xsd:group minOccurs="0" ref="OnBehalfOf.model"/>

</xsd:sequence>

</xsd:extension>

</xsd:complexContent>

</xsd:complexType>

Content Element Detail (all declarations; defined within this component only; 1/8)

isCorrection

Type:

xsd:boolean, predefined, simple content

Indicates if this message corrects an earlier request.

XML Source (w/o annotations (1); see within schema source)

<xsd:element name="isCorrection" type="xsd:boolean"/>
