element <businessUnit> (local)
Namespace:
http://www.fpml.org/FpML-5/confirmation
Type:
BusinessUnit
Content:
complex, 1 attribute, 4 elements
Defined:
locally within Party.model group in fpml-shared-5-11.xsd; see XML source

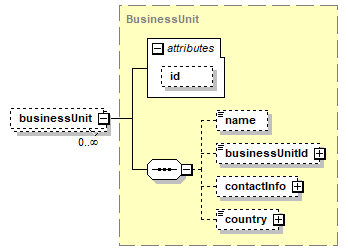

Content Model Diagram
XML Representation Summary
<businessUnit

id
 =
xsd:ID

>

Content:
name?, businessUnitId?, contactInfo?, country?
</businessUnit>
Content model elements (4):
Included in content model of elements (22):
party (defined in PartiesAndAccounts.model group),
party (defined in RegulatoryReportingStatusMessage complexType),
party (defined in RegulatoryReportingStatusMessage complexType),
party (defined in RegulatoryReportingStatusMessage complexType),
party (defined in RequestRegulatoryReportingStatusMessage complexType),
party (defined in RequestRegulatoryReportingStatusMessage complexType),
party (defined in RequestRegulatoryReportingStatusMessage complexType),
party (in creditEventNotification),
party (in creditEventNotificationRetracted),
party (in dealStatement),
party (in facilityNotification),
party (in facilityPositionStatement),
party (in facilityStatement),
party (in lcNotification),
party (in loanAllocationNotification),
party (in loanBulkServicingNotification),
party (in loanContractNotification),
party (in loanNotificationException),
party (in loanNotificationRetracted),
party (in loanPartyProfileStatement),
party (in loanTradeNotification),
party (in outstandingContractsStatement)
Annotation
Optional organization unit information used to describe the organization units (e.g. trading desks) involved in a transaction or business process .
XML Source (w/o annotations (1); see within schema source)
<xsd:element maxOccurs="unbounded" minOccurs="0" name="businessUnit" type="BusinessUnit"/>
