complexType "ConsentRefused"

Namespace:	http://www.fpml.org/FpML-5/confirmation
Content:	complex, 3 attributes, 28 elements
Defined:	globally in fpml-confirmation-processes-5-11.xsd; see XML source
Includes:	definitions of 5 elements
Used:	at 1 location

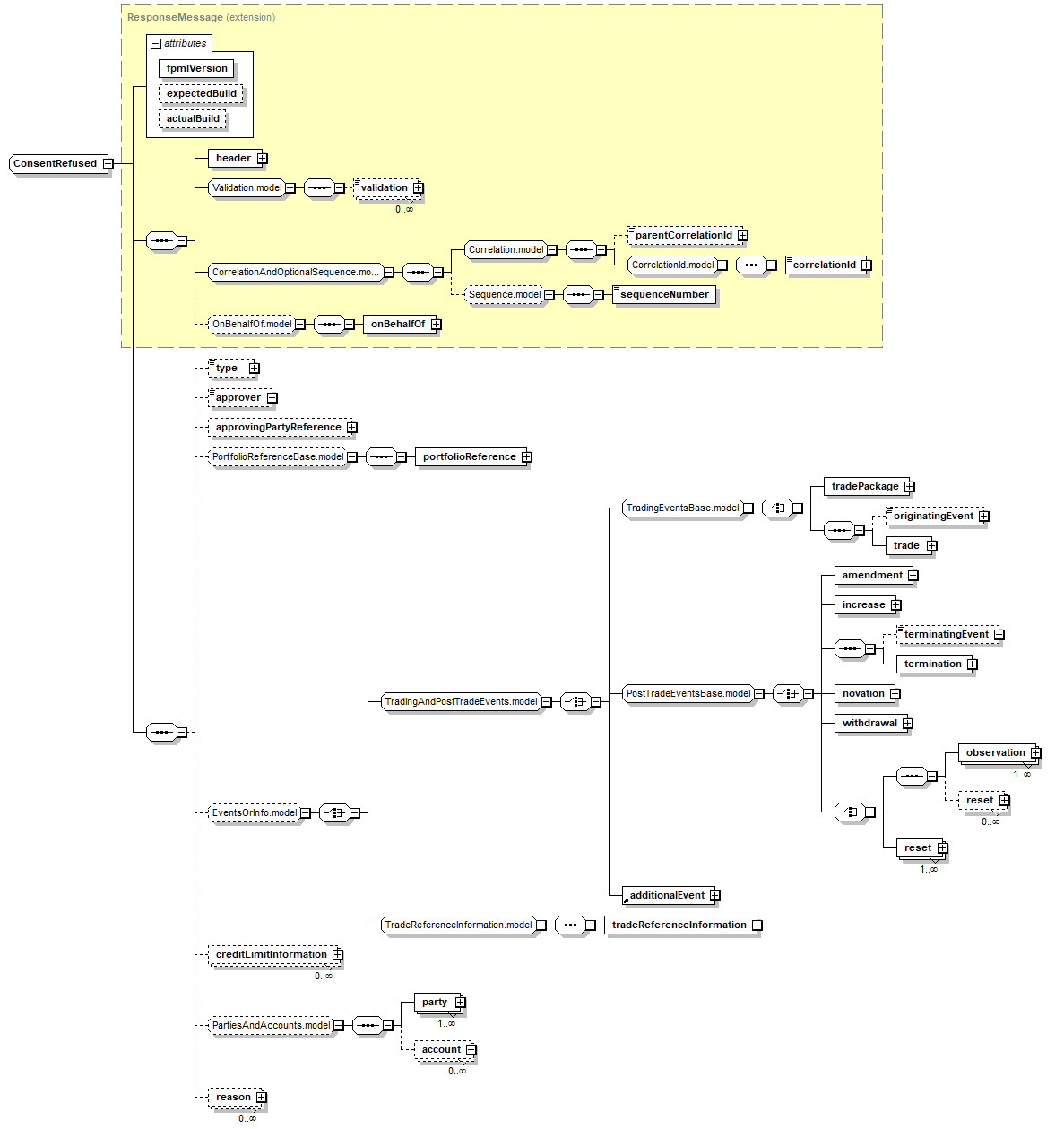

Content Model Diagram

XML Representation Summary

<...

fpmlVersion	=	xsd:token
expectedBuild	=	xsd:positiveInteger
actualBuild	=	"8"

Content:

</...>

Content Model Elements (28):

account,

additionalEvent,

amendment (defined in PostTradeEventsBase.model group),

approver (in consentRefused),

approvingPartyReference (in consentRefused),

correlationId,

creditLimitInformation (in consentRefused),

header (defined in ResponseMessage complexType),

increase,

novation,

observation (defined in PostTradeEventsBase.model group),

onBehalfOf (defined in OnBehalfOf.model group),

originatingEvent (defined in TradingEventsBase.model group),

parentCorrelationId,

party (defined in PartiesAndAccounts.model group),

portfolioReference (defined in PortfolioReferenceBase.model group),

reason (in consentRefused),

reset (defined in PostTradeEventsBase.model group),

sequenceNumber (defined in Sequence.model group),

terminatingEvent (defined in PostTradeEventsBase.model group),

termination (defined in PostTradeEventsBase.model group),

trade (defined in TradingEventsBase.model group),

tradePackage (defined in TradingEventsBase.model group),

tradeReferenceInformation,

type (in consentRefused),

validation,

withdrawal

All Direct / Indirect Based Elements (1):

consentRefused

Known Usage Locations

As direct type of elements (1):

consentRefused

Annotation

A message indicating that the sender does not grant consent for the recipient to perform the requested action.

Type Definition Detail

Type Derivation Tree

Document (extension)

Message (extension)

ResponseMessage (extension)

ConsentRefused

XML Source (w/o annotations (4); see within schema source)

<xsd:complexType name="ConsentRefused">

<xsd:complexContent>

<xsd:extension base="ResponseMessage">

<xsd:sequence>

<xsd:element minOccurs="0" name="type" type="ApprovalType"/>

<xsd:element minOccurs="0" name="approver" type="PersonId"/>

<xsd:element minOccurs="0" name="approvingPartyReference" type="PartyReference"/>

<xsd:group minOccurs="0" ref="PortfolioReferenceBase.model"/>

<xsd:group minOccurs="0" ref="EventsOrInfo.model"/>

<xsd:element maxOccurs="unbounded" minOccurs="0" name="creditLimitInformation" type="CreditLimitInformation"/>

<xsd:group minOccurs="0" ref="PartiesAndAccounts.model"/>

<xsd:element maxOccurs="unbounded" minOccurs="0" name="reason" type="Reason"/>

</xsd:sequence>

</xsd:extension>

</xsd:complexContent>

</xsd:complexType>

Content Element Detail (all declarations; defined within this component only; 5/28)

approver

Type:

PersonId, simple content

The full name or identifiying ID of the relevant approver.

Simple Content

xsd:normalizedString

maxLength:	255
minLength:	1

XML Source (w/o annotations (1); see within schema source)

<xsd:element minOccurs="0" name="approver" type="PersonId"/>

approvingPartyReference

Type:

PartyReference, empty content

A pointer style reference to a party defined elsewhere in the document. The party referenced needs to approve the specified item (e.g. trade or allocation).

XML Source (w/o annotations (1); see within schema source)

<xsd:element minOccurs="0" name="approvingPartyReference" type="PartyReference"/>

creditLimitInformation

Type:

CreditLimitInformation, complex content

XML Source (see within schema source)

<xsd:element maxOccurs="unbounded" minOccurs="0" name="creditLimitInformation" type="CreditLimitInformation"/>

reason

Type:

Reason, complex content

XML Source (see within schema source)

<xsd:element maxOccurs="unbounded" minOccurs="0" name="reason" type="Reason"/>

type

Type:

ApprovalType, simple content

The type of approval (e.g. "pre-clearing credit").

Simple Content

xsd:normalizedString

maxLength:	255
minLength:	0

XML Source (w/o annotations (1); see within schema source)

<xsd:element minOccurs="0" name="type" type="ApprovalType"/>
