element <equityForward> (global)
Namespace:
http://www.fpml.org/FpML-5/recordkeeping
Type:
EquityForward
Content:
complex, 1 attribute, 22 elements
Subst.Gr:
may substitute for element product
Defined:
globally in fpml-eqd-5-11.xsd; see XML source
Used:
never

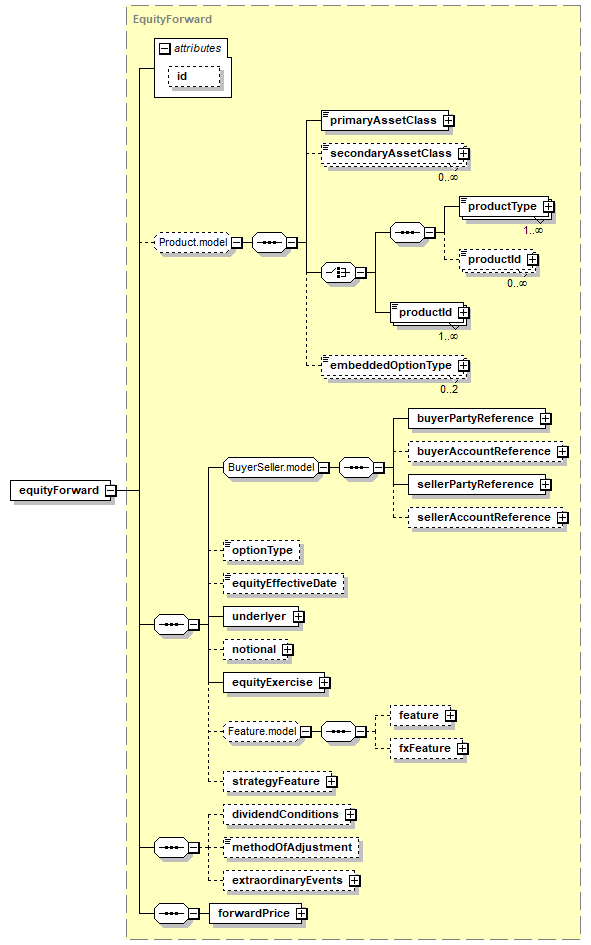

Content Model Diagram
XML Representation Summary
<equityForward

id
 =
xsd:ID

>

Content:
(primaryAssetClass, secondaryAssetClass*, ((productType+, productId*) | productId+), embeddedOptionType[0..2])?, buyerPartyReference, buyerAccountReference?, sellerPartyReference, sellerAccountReference?, optionType?, equityEffectiveDate?, underlyer, notional?, equityExercise, (feature?, fxFeature?)?, strategyFeature?, dividendConditions?, methodOfAdjustment?, extraordinaryEvents?, forwardPrice
</equityForward>
Content model elements (22):
buyerAccountReference (defined in BuyerSeller.model group),
buyerPartyReference (defined in BuyerSeller.model group),
dividendConditions (defined in EquityDerivativeLongFormBase complexType),
embeddedOptionType,
equityEffectiveDate,
equityExercise (defined in EquityDerivativeBase complexType),
extraordinaryEvents (defined in EquityDerivativeLongFormBase complexType),
feature (defined in Feature.model group),
forwardPrice,
fxFeature (defined in Feature.model group),
methodOfAdjustment (defined in EquityDerivativeLongFormBase complexType),
notional (defined in EquityDerivativeBase complexType),
optionType (defined in EquityDerivativeBase complexType),
primaryAssetClass (defined in Product.model group),
productId (defined in Product.model group),
productId (defined in Product.model group),
productType (defined in Product.model group),
secondaryAssetClass (defined in Product.model group),
sellerAccountReference (defined in BuyerSeller.model group),
sellerPartyReference (defined in BuyerSeller.model group),
strategyFeature (defined in EquityDerivativeBase complexType),
underlyer (defined in EquityDerivativeBase complexType)
May be included in elements by substitutions (23):
originalTrade (defined in TradeChangeBase complexType),
resultingTrade (defined in PhysicalSettlement complexType),
resultingTrade (defined in TradeChangeBase complexType),
trade (defined in DataDocument complexType),
trade (defined in TradeValuationItem complexType),
Annotation
A component describing an Equity Forward product.
XML Source (w/o annotations (1); see within schema source)
<xsd:element name="equityForward" substitutionGroup="product" type="EquityForward"/>
