group "EventsOrInfo.model"

Namespace:	http://www.fpml.org/FpML-5/confirmation
Content:	14 elements
Defined:	globally in fpml-confirmation-processes-5-12.xsd; see XML source
Used:	at 2 locations

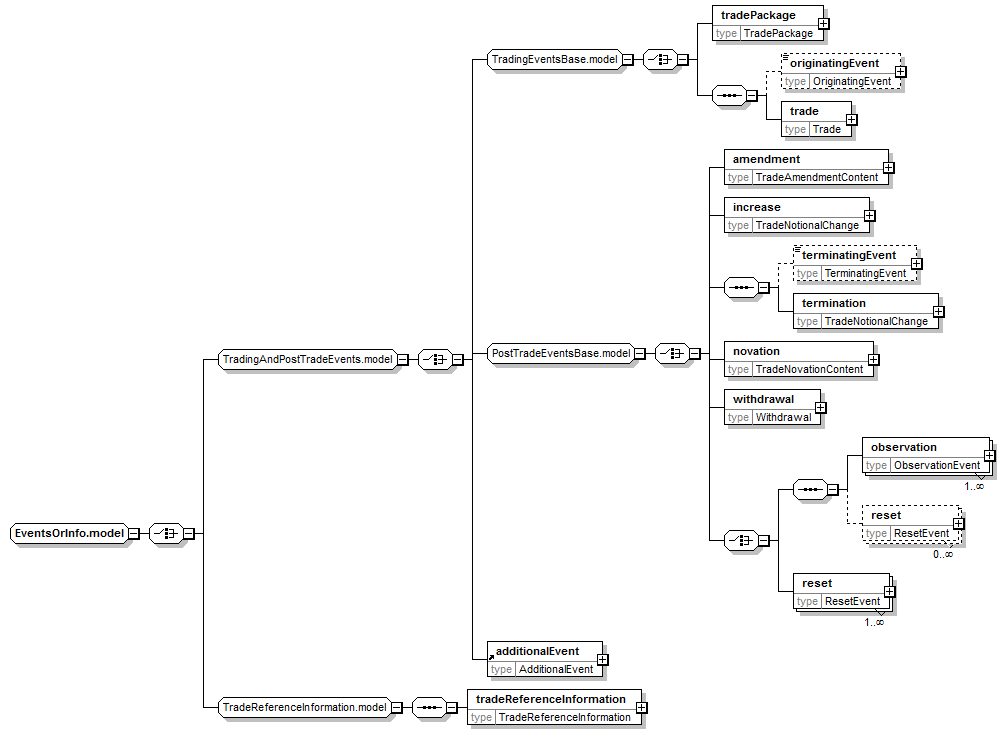

Content Model Diagram

Complex Content Model

Content Model Elements (14):

additionalEvent,

amendment (defined in PostTradeEventsBase.model group),

increase,

novation,

observation (defined in PostTradeEventsBase.model group),

originatingEvent (defined in TradingEventsBase.model group),

reset (defined in PostTradeEventsBase.model group),

terminatingEvent (defined in PostTradeEventsBase.model group),

termination (defined in PostTradeEventsBase.model group),

trade (defined in TradingEventsBase.model group),

tradePackage (defined in TradingEventsBase.model group),

tradeReferenceInformation,

withdrawal

Known Usage Locations

In definitions of global complexTypes (2):

ConsentGranted, ConsentRefused

Annotation

Defines a model group that allows either details of an event or information about a trade to be provided. Typically this will be used in a response to a request.

XML Source (w/o annotations (1); see within schema source)

<xsd:group name="EventsOrInfo.model">

<xsd:choice>

<xsd:group ref="TradingAndPostTradeEvents.model"/>

<xsd:group ref="TradeReferenceInformation.model"/>

</xsd:choice>

</xsd:group>
