complexType "LoanLegalActionStatement"

Namespace:	http://www.fpml.org/FpML-5/confirmation
Content:	complex, 3 attributes, 23 elements
Defined:	globally in fpml-loan-5-12.xsd; see XML source
Includes:	definitions of 4 elements
Used:	at 1 location

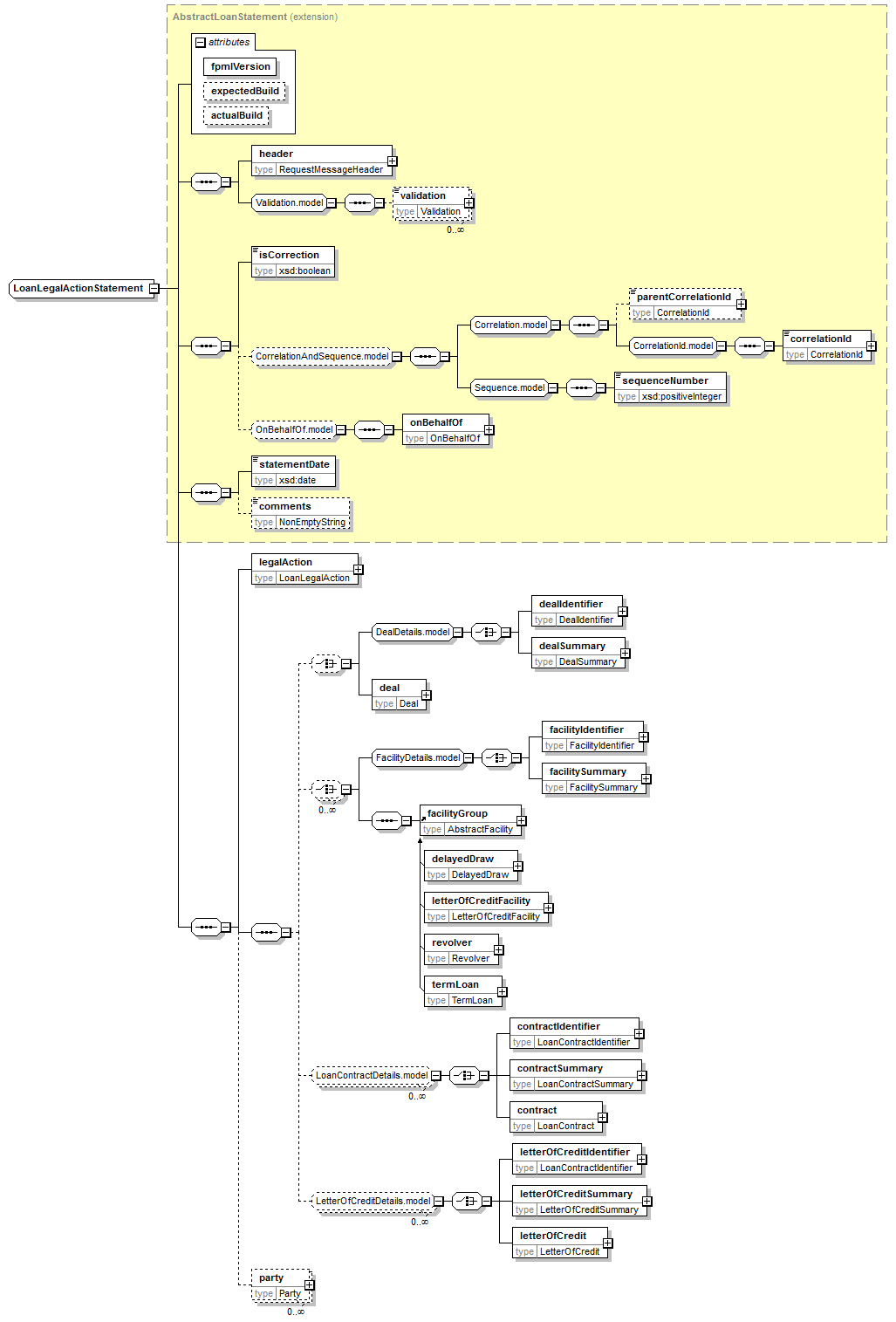

Content Model Diagram

XML Representation Summary

<...

fpmlVersion	=	xsd:token
expectedBuild	=	xsd:positiveInteger
actualBuild	=	"4"

Content:

</...>

Content Model Elements (23):

comments (defined in AbstractLoanStatement complexType),

contract (defined in LoanContractDetails.model group),

contractIdentifier,

contractSummary,

correlationId,

deal (in loanLegalActionStatement),

dealIdentifier (defined in DealDetails.model group),

dealSummary,

facilityGroup,

facilityIdentifier (defined in FacilityDetails.model group),

facilitySummary,

header (defined in RequestMessage complexType),

isCorrection,

legalAction (in loanLegalActionStatement),

letterOfCredit (defined in LetterOfCreditDetails.model group),

letterOfCreditIdentifier,

letterOfCreditSummary,

onBehalfOf (defined in OnBehalfOf.model group),

parentCorrelationId,

party (in loanLegalActionStatement),

sequenceNumber (defined in Sequence.model group),

statementDate,

validation

All Direct / Indirect Based Elements (1):

loanLegalActionStatement

Known Usage Locations

As direct type of elements (1):

loanLegalActionStatement

Annotation

A loan legal action statement structure.

Type Definition Detail

Type Derivation Tree

Document (extension)

Message (extension)

RequestMessage (extension)

CorrectableRequestMessage (extension)

AbstractLoanStatement (extension)

LoanLegalActionStatement

XML Source (w/o annotations (4); see within schema source)

<xsd:complexType name="LoanLegalActionStatement">

<xsd:complexContent>

<xsd:extension base="AbstractLoanStatement">

<xsd:sequence>

<xsd:element name="legalAction" type="LoanLegalAction"/>

<xsd:sequence>

<xsd:choice minOccurs="0">

<xsd:group ref="DealDetails.model"/>

<xsd:element name="deal" type="Deal"/>

</xsd:choice>

<xsd:choice maxOccurs="unbounded" minOccurs="0">

<xsd:group ref="FacilityDetails.model"/>

<xsd:sequence>

<xsd:element ref="facilityGroup"/>

</xsd:sequence>

</xsd:choice>

<xsd:group maxOccurs="unbounded" minOccurs="0" ref="LoanContractDetails.model"/>

<xsd:group maxOccurs="unbounded" minOccurs="0" ref="LetterOfCreditDetails.model"/>

</xsd:sequence>

<xsd:element maxOccurs="unbounded" minOccurs="0" name="party" type="Party"/>

</xsd:sequence>

</xsd:extension>

</xsd:complexContent>

</xsd:complexType>

Content Element Detail (all declarations; defined within this component only; 4/23)

deal

Type:

Deal, complex content

A complete deal structure.

XML Source (w/o annotations (1); see within schema source)

<xsd:element name="deal" type="Deal"/>

facilityGroup

Type:	AbstractFacility, complex content
Abstract:	(may not be used directly in instance XML documents)
Subst.Gr:	may be substituted with 4 elements

XML Source (see within schema source)

<xsd:element ref="facilityGroup"/>

legalAction

Type:

LoanLegalAction, complex content

A complete legal action structure.

XML Source (w/o annotations (1); see within schema source)

<xsd:element name="legalAction" type="LoanLegalAction"/>

party

Type:

Party, complex content

A legal entity or a subdivision of a legal entity.

XML Source (w/o annotations (1); see within schema source)

<xsd:element maxOccurs="unbounded" minOccurs="0" name="party" type="Party"/>
