element <facilityTermination> (global)
Namespace:
http://www.fpml.org/FpML-5/confirmation
Type:
FacilityTermination
Content:
complex, 12 elements
Subst.Gr:
may substitute for element facilityEventGroup
Defined:
globally in fpml-loan-5-12.xsd; see XML source
Used:
never

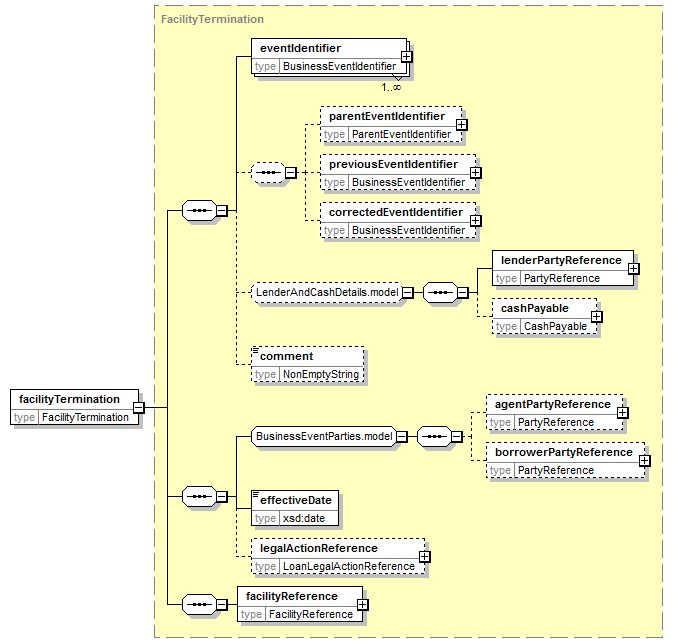

Content Model Diagram
XML Representation Summary
<facilityTermination>

Content:
eventIdentifier+, (parentEventIdentifier?, previousEventIdentifier?, correctedEventIdentifier?)?, (lenderPartyReference, cashPayable?)?, comment?, agentPartyReference?, borrowerPartyReference?, effectiveDate, legalActionReference?, facilityReference
</facilityTermination>
Content model elements (12):
agentPartyReference (defined in BusinessEventParties.model group),
borrowerPartyReference (defined in BusinessEventParties.model group),
cashPayable,
comment (defined in AbstractLoanEvent complexType),
correctedEventIdentifier,
effectiveDate (defined in AbstractLoanServicingEvent complexType),
eventIdentifier (defined in AbstractLoanEvent complexType),
facilityReference (defined in AbstractFacilityEvent complexType),
legalActionReference (defined in AbstractLoanServicingEvent complexType),
lenderPartyReference (defined in LenderAndCashDetails.model group),
parentEventIdentifier,
previousEventIdentifier
May be included in elements by substitutions (3):
facilityNotification, loanBulkServicingNotification, loanLegalActionNotification
XML Source (see within schema source)
<xsd:element name="facilityTermination" substitutionGroup="facilityEventGroup" type="FacilityTermination"/>
