group "Premium.model"

Namespace:	http://www.fpml.org/FpML-5/confirmation
Content:	3 elements
Defined:	globally in fpml-shared-5-12.xsd; see XML source
Includes:	definitions of 3 elements
Used:	at 1 location

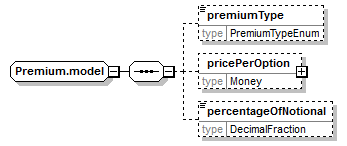

Content Model Diagram

Complex Content Model

Content Model Elements (3):

Known Usage Locations

Annotation

A model group for representing the option premium when expressed in a way other than an amount.

XML Source (w/o annotations (4); see within schema source)

<xsd:group name="Premium.model">

<xsd:sequence>

<xsd:element minOccurs="0" name="premiumType" type="PremiumTypeEnum"/>

<xsd:element minOccurs="0" name="pricePerOption" type="Money"/>

<xsd:element minOccurs="0" name="percentageOfNotional" type="DecimalFraction"/>

</xsd:sequence>

</xsd:group>

Content Element Detail (all declarations; defined within this component only; 3/3)

Type:

DecimalFraction, simple content

The amount of premium to be paid expressed as a percentage of the notional value of the transaction. A percentage of 5% would be expressed as 0.05.

Simple Content

xsd:decimal

XML Source (w/o annotations (1); see within schema source)

<xsd:element minOccurs="0" name="percentageOfNotional" type="DecimalFraction"/>

Type:

PremiumTypeEnum, simple content

Forward start Premium type

Simple Content

enumeration of xsd:token

Enumeration:

XML Source (w/o annotations (1); see within schema source)

<xsd:element minOccurs="0" name="premiumType" type="PremiumTypeEnum"/>

Type:

Money, complex content

The amount of premium to be paid expressed as a function of the number of options.

XML Source (w/o annotations (1); see within schema source)

<xsd:element minOccurs="0" name="pricePerOption" type="Money"/>
