element <observation> (local)
Namespace:
http://www.fpml.org/FpML-5/reporting
Type:
ObservationEvent
Content:
complex, 6 elements
Defined:
locally within Events.model group in fpml-business-events-5-12.xsd; see XML source

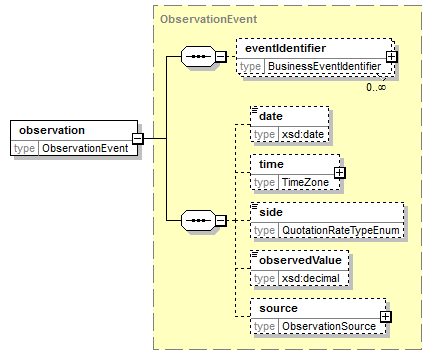

Content Model Diagram
XML Representation Summary
<observation>

Content:
eventIdentifier*, date?, time?, side?, observedValue?, source?
</observation>
Content model elements (6):
date (in observation defined in Events.model group),
eventIdentifier (defined in AbstractEvent complexType),
observedValue (in observation defined in Events.model group),
side (in observation defined in Events.model group),
source (in observation defined in Events.model group),
time (in observation defined in Events.model group)
Included in content model of elements (3):
XML Source (see within schema source)
<xsd:element name="observation" type="ObservationEvent"/>
