element <fx> (global)
Namespace:
http://www.fpml.org/FpML-5/confirmation
Type:
FxRateAsset
Content:
complex, 1 attribute, 9 elements
Subst.Gr:
substitutes for curveInstrument
Defined:
globally in fpml-asset-5-13.xsd; see XML source
Used:
never

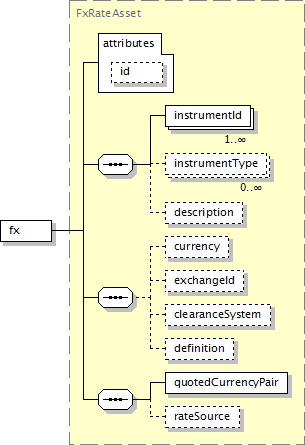

Component Diagram
XML Representation Summary
<fx

id
 =
xsd:ID

>

Content:
instrumentId+, instrumentType*, description?, currency?, exchangeId?, clearanceSystem?, definition?, quotedCurrencyPair, rateSource?
</fx>
Content model elements (9):
clearanceSystem,
currency (defined in UnderlyingAsset complexType),
definition (defined in UnderlyingAsset complexType),
description (defined in IdentifiedAsset complexType),
exchangeId (defined in UnderlyingAsset complexType),
instrumentId (defined in IdentifiedAsset complexType),
instrumentType,
quotedCurrencyPair (in fx),
rateSource (in fx)
May be included in elements by substitutions (1):
instrumentSet
Annotation
Identifies a simple underlying asset type that is an FX rate. Used for specifying FX rates in the pricing and risk model.
XML Source (w/o annotations (1); see within schema source)
<xsd:element name="fx" substitutionGroup="curveInstrument" type="FxRateAsset"/>
