element <rateIndex> (global)
Namespace:
http://www.fpml.org/FpML-5/confirmation
Type:
RateIndex
Content:
complex, 1 attribute, 11 elements
Subst.Gr:
substitutes for curveInstrument
Defined:
globally in fpml-asset-5-13.xsd; see XML source
Used:
never

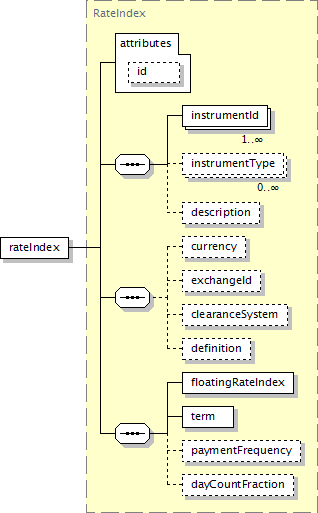

Component Diagram
XML Representation Summary
<rateIndex

id
 =
xsd:ID

>

Content:
instrumentId+, instrumentType*, description?, currency?, exchangeId?, clearanceSystem?, definition?, floatingRateIndex, term, paymentFrequency?, dayCountFraction?
</rateIndex>
Content model elements (11):
clearanceSystem,
currency (defined in UnderlyingAsset complexType),
dayCountFraction (in rateIndex),
definition (defined in UnderlyingAsset complexType),
description (defined in IdentifiedAsset complexType),
exchangeId (defined in UnderlyingAsset complexType),
floatingRateIndex (in rateIndex),
instrumentId (defined in IdentifiedAsset complexType),
instrumentType,
paymentFrequency (in rateIndex),
term (in rateIndex)
May be included in elements by substitutions (1):
instrumentSet
Annotation
Identifies a simple underlying asset that is an interest rate index. Used for specifying benchmark assets in the market environment in the pricing and risk model.
XML Source (w/o annotations (1); see within schema source)
<xsd:element name="rateIndex" substitutionGroup="curveInstrument" type="RateIndex"/>
