element <simpleCreditDefaultSwap> (global)
Namespace:
http://www.fpml.org/FpML-5/confirmation
Type:
SimpleCreditDefaultSwap
Content:
complex, 1 attribute, 11 elements
Subst.Gr:
substitutes for curveInstrument
Defined:
globally in fpml-asset-5-13.xsd; see XML source
Used:
never

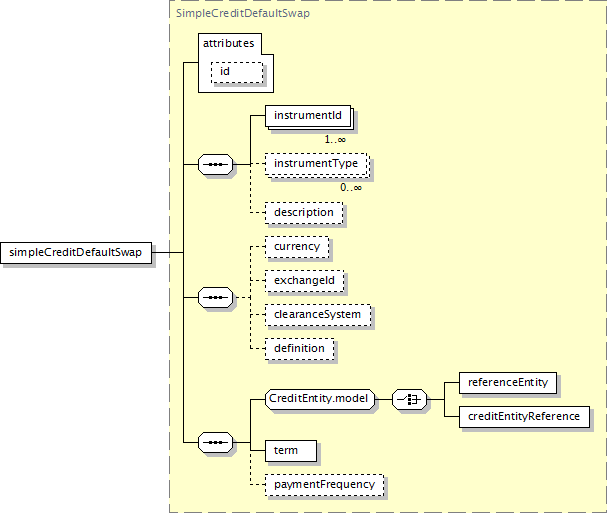

Component Diagram
XML Representation Summary
<simpleCreditDefaultSwap

id
 =
xsd:ID

>

Content:
instrumentId+, instrumentType*, description?, currency?, exchangeId?, clearanceSystem?, definition?, (referenceEntity | creditEntityReference), term, paymentFrequency?
</simpleCreditDefaultSwap>
Content model elements (11):
clearanceSystem,
creditEntityReference,
currency (defined in UnderlyingAsset complexType),
definition (defined in UnderlyingAsset complexType),
description (defined in IdentifiedAsset complexType),
exchangeId (defined in UnderlyingAsset complexType),
instrumentId (defined in IdentifiedAsset complexType),
instrumentType,
paymentFrequency (in simpleCreditDefaultSwap),
referenceEntity (defined in CreditEntity.model group),
term (in simpleCreditDefaultSwap)
May be included in elements by substitutions (1):
instrumentSet
Annotation
Identifies a simple underlying asset that is a credit default swap.
XML Source (w/o annotations (1); see within schema source)
<xsd:element name="simpleCreditDefaultSwap" substitutionGroup="curveInstrument" type="SimpleCreditDefaultSwap"/>
XML schema documentation generated with FlexDoc/XML 1.12.2 using FlexDoc/XML XSDDoc 2.9.1 template set. All XSD diagrams generated by FlexDoc/XML DiagramKit.
