element <publication> (local)
Namespace:
http://www.fpml.org/FpML-5/confirmation
Type:
CommodityInformationSource
Content:
complex, 3 elements
Defined:
locally within CommodityReferencePriceFramework.model group in fpml-asset-5-13.xsd; see XML source

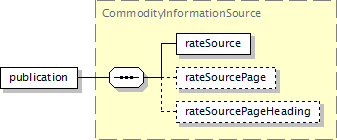

Component Diagram
XML Representation Summary
<publication>

Content:
rateSource, rateSourcePage?, rateSourcePageHeading?
</publication>
Content model elements (3):
rateSource (in publication),
rateSourcePage (in publication),
rateSourcePageHeading (in publication)
Included in content model of elements (6):
commodity,
commodity (defined in CommodityBasketUnderlyingBase complexType),
commodity (defined in CommodityUnderlyerChoice.model group),
commodity (in commodityDigitalOption),
commodity (in commodityOption),
commodity (in floatingLeg)
Annotation
For those commodities being traded with reference to a price distributed by a publication, that publication should be specified in the 'publication' element.
XML Source (w/o annotations (1); see within schema source)
<xsd:element name="publication" type="CommodityInformationSource"/>
