element <fxConversion> (local)
Namespace:
http://www.fpml.org/FpML-5/confirmation
Type:
FxConversion
Content:
complex, 2 elements
Defined:
locally within EquityPrice.model group in fpml-asset-5-13.xsd; see XML source

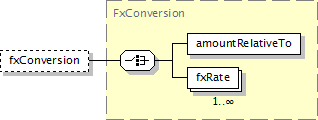

Component Diagram
XML Representation Summary
<fxConversion>

Content:
amountRelativeTo | fxRate+
</fxConversion>
Content model elements (2):
amountRelativeTo (in fxConversion),
fxRate (in fxConversion)
Included in content model of elements (4):
initialPrice (in rateOfReturn),
underlyerPrice,
valuationPriceFinal,
valuationPriceInterim
Annotation
Specifies the currency conversion rate that applies to an amount. This rate can either be defined elsewhere in the document (case of a quanto swap), or explicitly described through this component.
XML Source (w/o annotations (1); see within schema source)
<xsd:element minOccurs="0" name="fxConversion" type="FxConversion"/>
