element <changeInQuantity> (local)
Namespace:
http://www.fpml.org/FpML-5/confirmation
Type:
UnitQuantityRef
Content:
complex, 1 attribute, 3 elements
Defined:
locally within ReportingNotionalChange.model group in fpml-business-events-5-13.xsd; see XML source

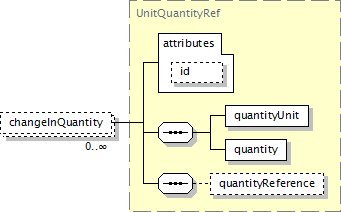

Component Diagram
XML Representation Summary
<changeInQuantity

id
 =
xsd:ID

>

Content:
quantityUnit, quantity, quantityReference?
</changeInQuantity>
Content model elements (3):
quantity (defined in UnitQuantity complexType),
quantityReference (in changeInQuantity),
quantityUnit (defined in UnitQuantity complexType)
Included in content model of elements (2):
amendment (defined in ExecutionNotification complexType),
amendment (defined in PostTradeEventsBase.model group)
Annotation
The change in quantity(s) from a prior report as a result of this event. The current quantity will be reported in the trade itself. This corresponds to the MiFIR "units" value.
XML Source (w/o annotations (1); see within schema source)
<xsd:element maxOccurs="unbounded" minOccurs="0" name="changeInQuantity" type="UnitQuantityRef"/>
