element <outstandingKnownAmount> (local)
Namespace:
http://www.fpml.org/FpML-5/confirmation
Type:
NonNegativeMoney
Content:
complex, 1 attribute, 2 elements
Defined:
locally within TradeLegFixedAmountChange.model group in fpml-business-events-5-13.xsd; see XML source

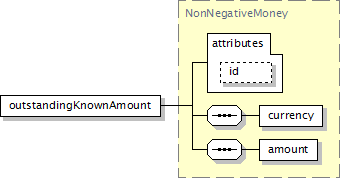

Component Diagram
XML Representation Summary
<outstandingKnownAmount

id
 =
xsd:ID

>

Content:
currency, amount
</outstandingKnownAmount>
Content model elements (2):
amount (defined in NonNegativeMoney complexType),
currency (defined in MoneyBase complexType)
Included in content model of elements (2):
novationAmount, sizeChange
XML Source (see within schema source)
<xsd:element name="outstandingKnownAmount" type="NonNegativeMoney"/>
