element <novationAmount> (local)
Namespace:
http://www.fpml.org/FpML-5/confirmation
Type:
TradeLegSizeChange
Content:
complex, 15 elements
Defined:
locally within NovationAmounts.model group in fpml-business-events-5-13.xsd; see XML source

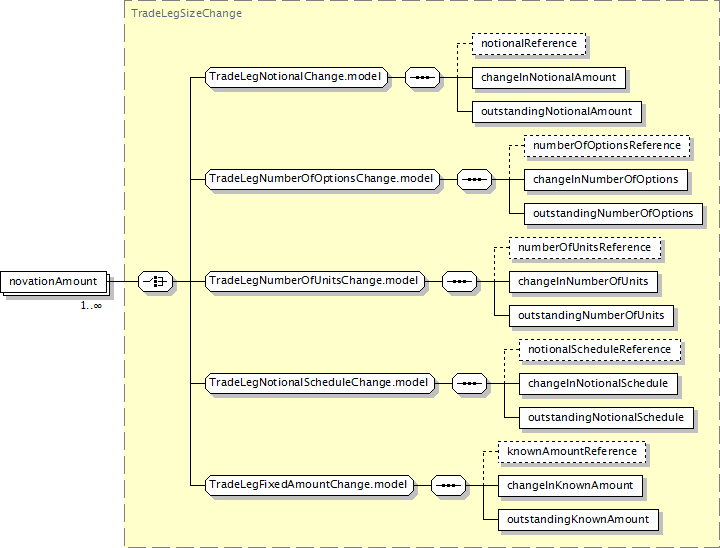

Component Diagram
XML Representation Summary
<novationAmount>

Content:
(notionalReference?, changeInNotionalAmount, outstandingNotionalAmount) | (numberOfOptionsReference?, changeInNumberOfOptions, outstandingNumberOfOptions) | (numberOfUnitsReference?, changeInNumberOfUnits, outstandingNumberOfUnits) | (notionalScheduleReference?, changeInNotionalSchedule, outstandingNotionalSchedule) | (knownAmountReference?, changeInKnownAmount, outstandingKnownAmount)
</novationAmount>
Content model elements (15):
changeInKnownAmount,
changeInNotionalAmount (defined in TradeLegNotionalChange.model group),
changeInNotionalSchedule,
changeInNumberOfOptions (defined in TradeLegNumberOfOptionsChange.model group),
changeInNumberOfUnits (defined in TradeLegNumberOfUnitsChange.model group),
knownAmountReference,
notionalReference (defined in TradeLegNotionalChange.model group),
notionalScheduleReference (defined in TradeLegNotionalScheduleChange.model group),
numberOfOptionsReference (defined in TradeLegNumberOfOptionsChange.model group),
numberOfUnitsReference (defined in TradeLegNumberOfUnitsChange.model group),
outstandingKnownAmount,
outstandingNotionalAmount (defined in TradeLegNotionalChange.model group),
outstandingNotionalSchedule (defined in TradeLegNotionalScheduleChange.model group),
outstandingNumberOfOptions (defined in TradeLegNumberOfOptionsChange.model group),
outstandingNumberOfUnits (defined in TradeLegNumberOfUnitsChange.model group)
Included in content model of elements (1):
novation
XML Source (see within schema source)
<xsd:element maxOccurs="unbounded" name="novationAmount" type="TradeLegSizeChange"/>
