group "TradeNotionalChange.model"
Namespace:
Content:
Defined:
Includes:
definitions of 6 elements
Used:

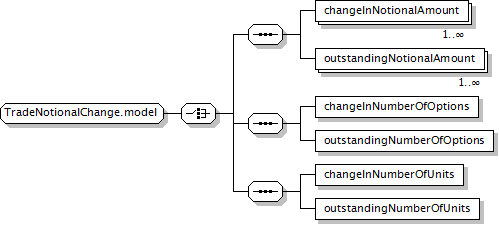

Component Diagram
Complex Content Model
Content Model Elements (6):
Known Usage Locations
Annotation
DEPRECATED. A structure describing a change to the trade notional.
XML Source (w/o annotations (7); see within schema source)
<xsd:group fpml-annotation:deprecated="true" fpml-annotation:deprecatedReason="The model could not provide support for linking notionals with product legs. Also, there was limitation in the existing increase and termination events which don&#8217;t allow the reporting of both change of units or change of notional amount as required for dividend swaps, for example. Instead, sizeChange, should be used." name="TradeNotionalChange.model">
<xsd:choice>
<xsd:sequence>
<xsd:element maxOccurs="unbounded" name="changeInNotionalAmount" type="NonNegativeMoney"/>
<xsd:element maxOccurs="unbounded" name="outstandingNotionalAmount" type="NonNegativeMoney"/>
</xsd:sequence>
<xsd:sequence>
<xsd:element name="changeInNumberOfOptions" type="xsd:decimal"/>
<xsd:element name="outstandingNumberOfOptions" type="xsd:decimal"/>
</xsd:sequence>
<xsd:sequence>
<xsd:element name="changeInNumberOfUnits" type="xsd:decimal"/>
<xsd:element name="outstandingNumberOfUnits" type="xsd:decimal"/>
</xsd:sequence>
</xsd:choice>
</xsd:group>
Content Element Detail (all declarations; defined within this component only; 6/6)
changeInNotionalAmount
Type:
NonNegativeMoney, complex content
Specifies the fixed amount by which the Notional Amount changes. The direction of the change (increase or decrease) is specified by the event type (Termination => reduction, Increase => greater.)
XML Source (w/o annotations (1); see within schema source)
<xsd:element maxOccurs="unbounded" name="changeInNotionalAmount" type="NonNegativeMoney"/>

changeInNumberOfOptions
Type:
xsd:decimal, predefined, simple content
Specifies the fixed amount by which the Number of Options changes
XML Source (w/o annotations (1); see within schema source)
<xsd:element name="changeInNumberOfOptions" type="xsd:decimal"/>

changeInNumberOfUnits
Type:
xsd:decimal, predefined, simple content
Specifies the fixed amount by which the Number of Units changes
XML Source (w/o annotations (1); see within schema source)
<xsd:element name="changeInNumberOfUnits" type="xsd:decimal"/>

outstandingNotionalAmount
Type:
NonNegativeMoney, complex content
Specifies the Notional amount after the Change
XML Source (w/o annotations (1); see within schema source)
<xsd:element maxOccurs="unbounded" name="outstandingNotionalAmount" type="NonNegativeMoney"/>

outstandingNumberOfOptions
Type:
xsd:decimal, predefined, simple content
Specifies the Number of Options after the Change.
XML Source (w/o annotations (1); see within schema source)
<xsd:element name="outstandingNumberOfOptions" type="xsd:decimal"/>

outstandingNumberOfUnits
Type:
xsd:decimal, predefined, simple content
Specifies the Number of Units
XML Source (w/o annotations (1); see within schema source)
<xsd:element name="outstandingNumberOfUnits" type="xsd:decimal"/>
