element <electricityPhysicalLeg> (global)
Namespace:
http://www.fpml.org/FpML-5/confirmation
Type:
ElectricityPhysicalLeg
Content:
complex, 1 attribute, 11 elements
Subst.Gr:
substitutes for commoditySwapLeg
Defined:
globally in fpml-com-5-13.xsd; see XML source
Used:
never

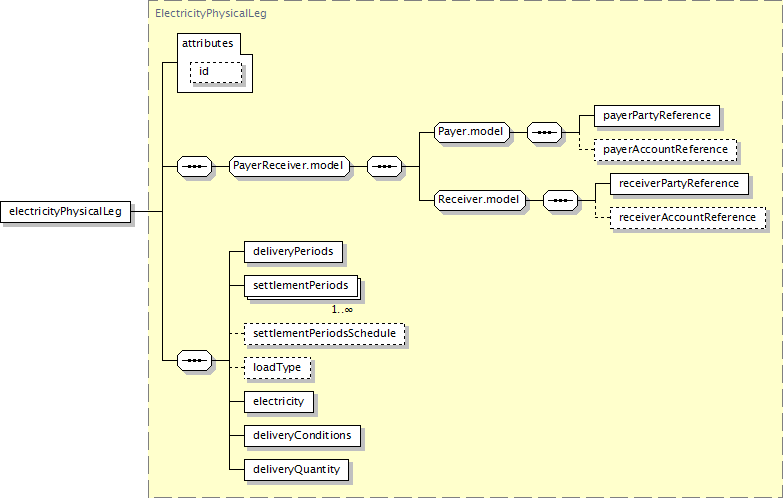

Component Diagram
XML Representation Summary
<electricityPhysicalLeg

id
 =
xsd:ID

>

Content:
payerPartyReference, payerAccountReference?, receiverPartyReference, receiverAccountReference?, deliveryPeriods, settlementPeriods+, settlementPeriodsSchedule?, loadType?, electricity, deliveryConditions, deliveryQuantity
</electricityPhysicalLeg>
Content model elements (11):
deliveryConditions (in electricityPhysicalLeg),
deliveryPeriods (in electricityPhysicalLeg),
deliveryQuantity (in electricityPhysicalLeg),
electricity (in electricityPhysicalLeg),
loadType (in electricityPhysicalLeg),
payerAccountReference,
payerPartyReference (defined in Payer.model group),
receiverAccountReference,
receiverPartyReference (defined in Receiver.model group),
settlementPeriods (in electricityPhysicalLeg),
settlementPeriodsSchedule
May be included in elements by substitutions (2):
commoditySwap,
commoditySwap (in commoditySwaption)
Annotation
Physically settled electricity leg.
XML Source (w/o annotations (1); see within schema source)
<xsd:element name="electricityPhysicalLeg" substitutionGroup="commoditySwapLeg" type="ElectricityPhysicalLeg"/>
