element <fixedLeg> (global)
Namespace:
http://www.fpml.org/FpML-5/confirmation
Type:
FixedPriceLeg
Content:
complex, 1 attribute, 26 elements
Subst.Gr:
substitutes for commoditySwapLeg
Defined:
globally in fpml-com-5-13.xsd; see XML source
Used:
never

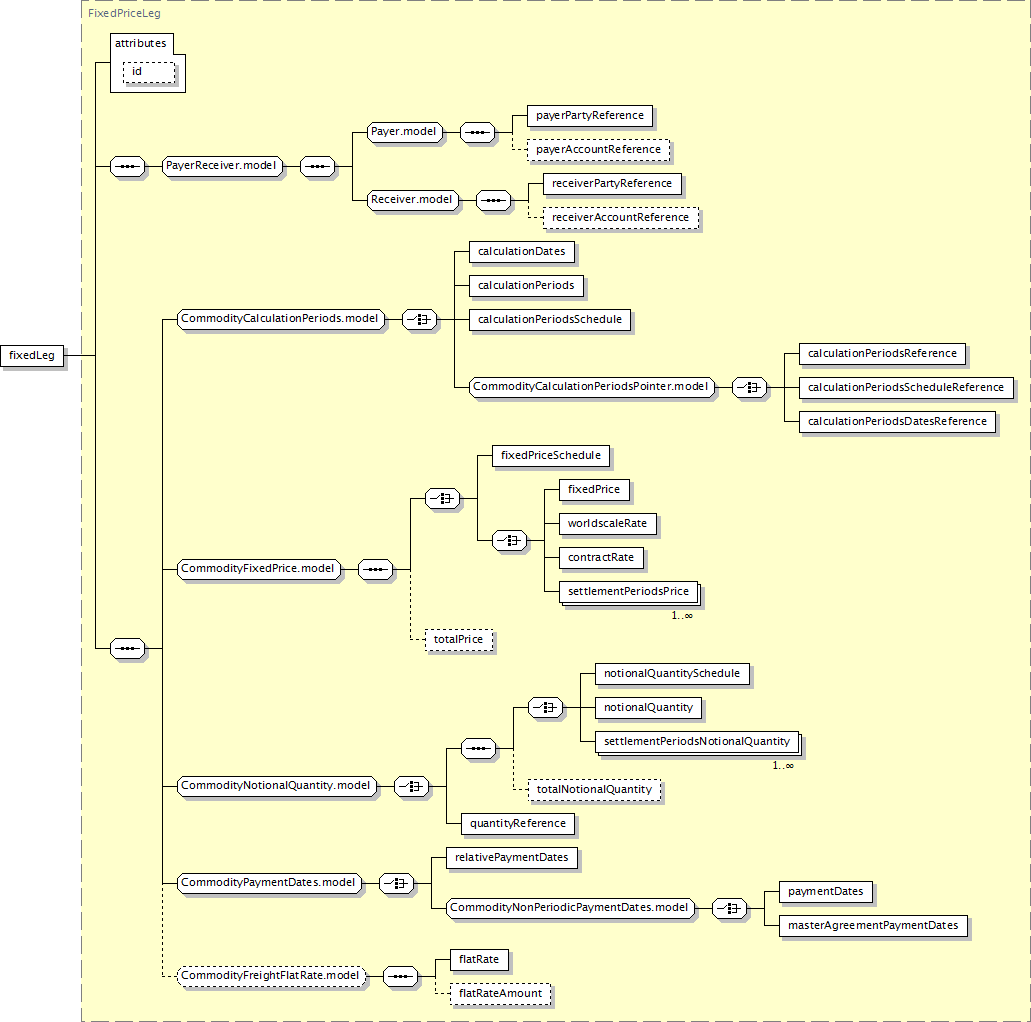

Component Diagram
XML Representation Summary
<fixedLeg

id
 =
xsd:ID

>

Content:
payerPartyReference, payerAccountReference?, receiverPartyReference, receiverAccountReference?, (calculationDates | calculationPeriods | calculationPeriodsSchedule | calculationPeriodsReference | calculationPeriodsScheduleReference | calculationPeriodsDatesReference), (fixedPriceSchedule | fixedPrice | worldscaleRate | contractRate | settlementPeriodsPrice+), totalPrice?, (((notionalQuantitySchedule | notionalQuantity | settlementPeriodsNotionalQuantity+), totalNotionalQuantity?) | quantityReference), (relativePaymentDates | paymentDates | masterAgreementPaymentDates), (flatRate, flatRateAmount?)?
</fixedLeg>
Content model elements (26):
calculationDates (defined in CommodityCalculationPeriods.model group),
calculationPeriods (defined in CommodityCalculationPeriods.model group),
calculationPeriodsDatesReference,
calculationPeriodsReference,
calculationPeriodsSchedule (defined in CommodityCalculationPeriods.model group),
calculationPeriodsScheduleReference,
contractRate,
fixedPrice (in fixedLeg),
fixedPriceSchedule,
flatRate,
flatRateAmount,
masterAgreementPaymentDates,
notionalQuantity (defined in CommodityNotionalQuantity.model group),
notionalQuantitySchedule,
payerAccountReference,
payerPartyReference (defined in Payer.model group),
paymentDates (defined in CommodityNonPeriodicPaymentDates.model group),
quantityReference (defined in CommodityNotionalQuantity.model group),
receiverAccountReference,
receiverPartyReference (defined in Receiver.model group),
relativePaymentDates,
settlementPeriodsNotionalQuantity,
settlementPeriodsPrice,
totalNotionalQuantity (defined in CommodityNotionalQuantity.model group),
totalPrice (in fixedLeg),
worldscaleRate
May be included in elements by substitutions (2):
commoditySwap,
commoditySwap (in commoditySwaption)
Annotation
Fixed Price Leg.
XML Source (w/o annotations (1); see within schema source)
<xsd:element name="fixedLeg" substitutionGroup="commoditySwapLeg" type="FixedPriceLeg"/>
