element <collateralAllocationRejected> (global)
Namespace:
http://www.fpml.org/FpML-5/confirmation
Type:
Exception
Content:
complex, 3 attributes, 7 elements
Defined:
globally in fpml-confirmation-processes-5-13.xsd; see XML source
Used:
never

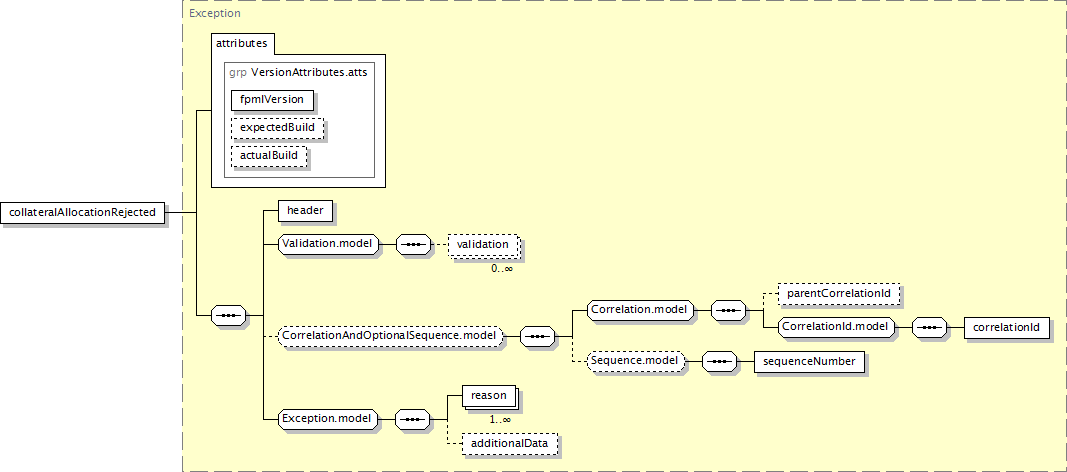

Component Diagram
XML Representation Summary
<collateralAllocationRejected

fpmlVersion
 =
xsd:token
expectedBuild
 =
xsd:positiveInteger
actualBuild
 =
"2"

>

Content:
header, validation*, (parentCorrelationId?, correlationId, sequenceNumber?)?, reason+, additionalData?
</collateralAllocationRejected>
Content model elements (7):
additionalData (defined in Exception.model group),
correlationId,
header (defined in Exception complexType),
parentCorrelationId,
reason (defined in Exception.model group),
sequenceNumber (defined in Sequence.model group),
validation
XML Source (see within schema source)
<xsd:element name="collateralAllocationRejected" type="Exception"/>
