element <executionAcknowledgement> (global)
Namespace:
http://www.fpml.org/FpML-5/confirmation
Type:
EventRequestAcknowledgement
Content:
complex, 3 attributes, 10 elements
Defined:
globally in fpml-confirmation-processes-5-13.xsd; see XML source
Used:
never

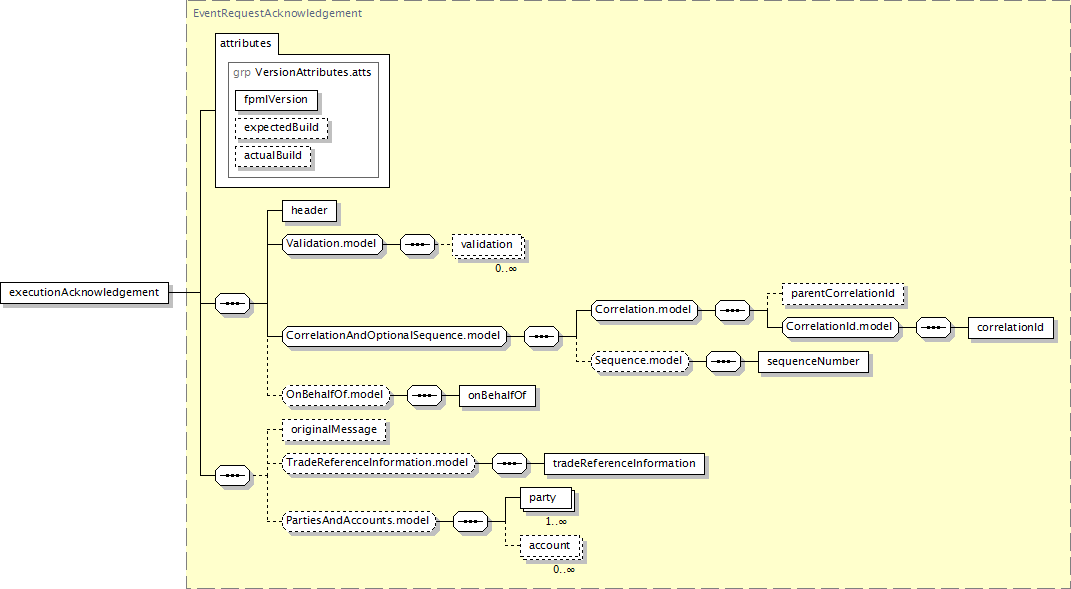

Component Diagram
XML Representation Summary
<executionAcknowledgement

fpmlVersion
 =
xsd:token
expectedBuild
 =
xsd:positiveInteger
actualBuild
 =
"2"

>

Content:
header, validation*, parentCorrelationId?, correlationId, sequenceNumber?, onBehalfOf?, originalMessage?, tradeReferenceInformation?, (party+, account*)?
</executionAcknowledgement>
Content model elements (10):
account,
correlationId,
header (defined in ResponseMessage complexType),
onBehalfOf (defined in OnBehalfOf.model group),
originalMessage (defined in EventRequestAcknowledgement complexType),
parentCorrelationId,
party (defined in PartiesAndAccounts.model group),
sequenceNumber (defined in Sequence.model group),
tradeReferenceInformation,
validation
XML Source (see within schema source)
<xsd:element name="executionAcknowledgement" type="EventRequestAcknowledgement"/>
