element <termination> (local)
Namespace:
http://www.fpml.org/FpML-5/confirmation
Type:
TradeNotionalChange
Content:
complex, 16 elements
Defined:
locally within ClearingResults.model group in fpml-confirmation-processes-5-13.xsd; see XML source

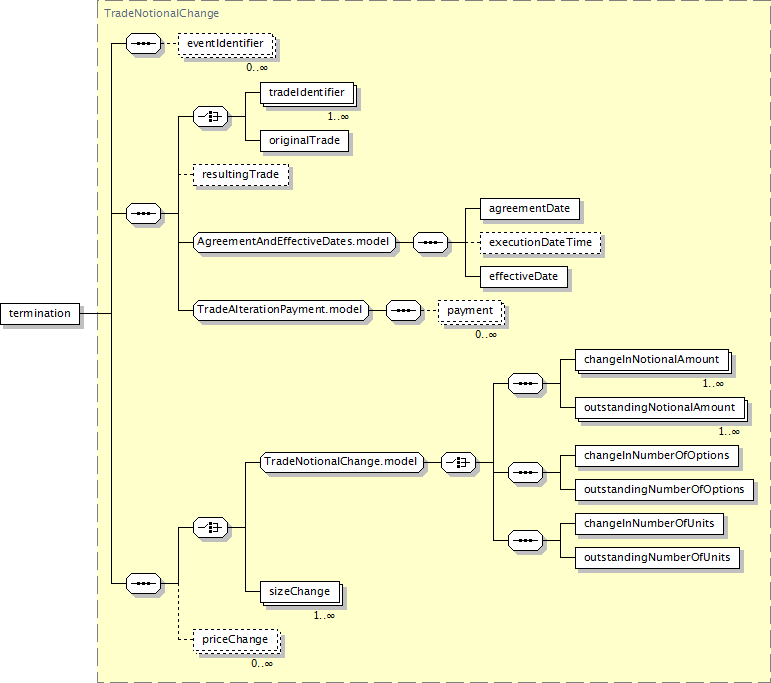

Component Diagram
XML Representation Summary
<termination>

Content:
eventIdentifier*, (tradeIdentifier+ | originalTrade), resultingTrade?, agreementDate, executionDateTime?, effectiveDate, payment*, ((changeInNotionalAmount+, outstandingNotionalAmount+) | (changeInNumberOfOptions, outstandingNumberOfOptions) | (changeInNumberOfUnits, outstandingNumberOfUnits) | sizeChange+), priceChange*
</termination>
Content model elements (16):
agreementDate,
changeInNotionalAmount (defined in TradeNotionalChange.model group),
changeInNumberOfOptions (defined in TradeNotionalChange.model group),
changeInNumberOfUnits (defined in TradeNotionalChange.model group),
effectiveDate (defined in AgreementAndEffectiveDates.model group),
eventIdentifier (defined in AbstractEvent complexType),
executionDateTime (defined in AgreementAndEffectiveDates.model group),
originalTrade (defined in TradeChangeBase complexType),
outstandingNotionalAmount (defined in TradeNotionalChange.model group),
outstandingNumberOfOptions (defined in TradeNotionalChange.model group),
outstandingNumberOfUnits (defined in TradeNotionalChange.model group),
payment (defined in TradeAlterationPayment.model group),
priceChange,
resultingTrade (defined in TradeChangeBase complexType),
sizeChange,
tradeIdentifier (defined in TradeChangeBase complexType)
Included in content model of elements (1):
clearingConfirmed
XML Source (see within schema source)
<xsd:element name="termination" type="TradeNotionalChange"/>
