element <interestLeg> (global)
Namespace:
http://www.fpml.org/FpML-5/confirmation
Type:
InterestLeg
Content:
complex, 1 attribute, 12 elements
Subst.Gr:
substitutes for returnSwapLeg
Defined:
globally in fpml-eq-shared-5-13.xsd; see XML source
Used:
never

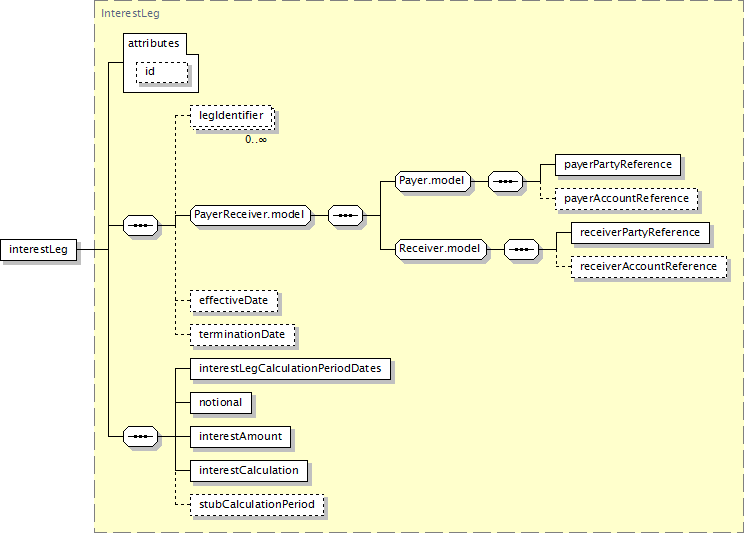

Component Diagram
XML Representation Summary
<interestLeg

id
 =
xsd:ID

>

Content:
legIdentifier*, payerPartyReference, payerAccountReference?, receiverPartyReference, receiverAccountReference?, effectiveDate?, terminationDate?, interestLegCalculationPeriodDates, notional, interestAmount, interestCalculation, stubCalculationPeriod?
</interestLeg>
Content model elements (12):
effectiveDate (defined in DirectionalLeg complexType),
interestAmount,
interestCalculation,
interestLegCalculationPeriodDates,
legIdentifier (defined in DirectionalLeg complexType),
notional (in interestLeg),
payerAccountReference,
payerPartyReference (defined in Payer.model group),
receiverAccountReference,
receiverPartyReference (defined in Receiver.model group),
stubCalculationPeriod,
terminationDate (defined in DirectionalLeg complexType)
May be included in elements by substitutions (2):
equitySwapTransactionSupplement, returnSwap
Annotation
The fixed income amounts of the return type swap.
XML Source (w/o annotations (1); see within schema source)
<xsd:element name="interestLeg" substitutionGroup="returnSwapLeg" type="InterestLeg"/>
