group "FxTargetConditionLevel.model"
Namespace:
http://www.fpml.org/FpML-5/confirmation
Content:
5 elements
Defined:
globally in fpml-fx-targets-5-13.xsd; see XML source
Includes:
definitions of 5 elements
Used:
at 3 locations

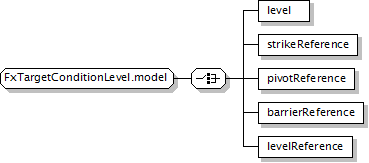

Component Diagram
Complex Content Model
level | strikeReference | pivotReference | barrierReference | levelReference
Content Model Elements (5):
barrierReference (defined in FxTargetConditionLevel.model group),
level (defined in FxTargetConditionLevel.model group),
levelReference,
pivotReference,
strikeReference (defined in FxTargetConditionLevel.model group)
Known Usage Locations
Annotation
Conditions can be expressed in different ways: as a specific level, as strike, pivot, or barrier.
XML Source (w/o annotations (6); see within schema source)
<xsd:group name="FxTargetConditionLevel.model">
<xsd:choice>
<xsd:element name="level" type="FxLevel"/>
<xsd:element name="strikeReference" type="FxStrikeReference"/>
<xsd:element name="pivotReference" type="FxPivotReference"/>
<xsd:element name="barrierReference" type="FxComplexBarrierBaseReference"/>
<xsd:element name="levelReference" type="FxLevelReference"/>
</xsd:choice>
</xsd:group>
Content Element Detail (all declarations; defined within this component only; 5/5)
barrierReference
Type:
FxComplexBarrierBaseReference, empty content
Reference to a perExpiryBarrier component to indicate theat the bound of the region is defined by the barrier component.
XML Source (w/o annotations (1); see within schema source)
<xsd:element name="barrierReference" type="FxComplexBarrierBaseReference"/>
level
Type:
FxLevel, complex content
Level expressed as a level with optional steps different from strike, pivot, or barrier.
XML Source (w/o annotations (1); see within schema source)
<xsd:element name="level" type="FxLevel"/>
levelReference
Type:
FxLevelReference, empty content
Reference to a level defined within the FX product.
XML Source (w/o annotations (1); see within schema source)
<xsd:element name="levelReference" type="FxLevelReference"/>
pivotReference
Type:
FxPivotReference, empty content
Reference to the pivot defined within the FX product.
XML Source (w/o annotations (1); see within schema source)
<xsd:element name="pivotReference" type="FxPivotReference"/>
strikeReference
Type:
FxStrikeReference, empty content
Reference to a strike defined within the FX product.
XML Source (w/o annotations (1); see within schema source)
<xsd:element name="strikeReference" type="FxStrikeReference"/>
