element <lcFxRevaluation> (global)
Namespace:
http://www.fpml.org/FpML-5/confirmation
Type:
LcFxRevaluation
Content:
complex, 14 elements
Subst.Gr:
substitutes for lcEventGroup
Defined:
globally in fpml-loan-5-13.xsd; see XML source
Used:
never

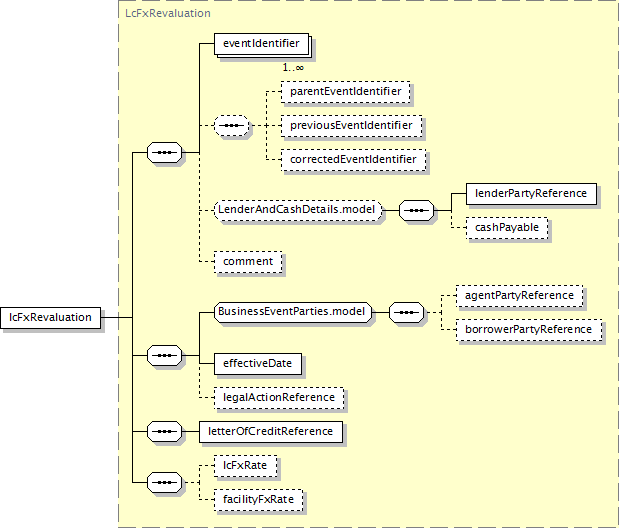

Component Diagram
XML Representation Summary
<lcFxRevaluation>

Content:
eventIdentifier+, (parentEventIdentifier?, previousEventIdentifier?, correctedEventIdentifier?)?, (lenderPartyReference, cashPayable?)?, comment?, agentPartyReference?, borrowerPartyReference?, effectiveDate, legalActionReference?, letterOfCreditReference, lcFxRate?, facilityFxRate?
</lcFxRevaluation>
Content model elements (14):
agentPartyReference (defined in BusinessEventParties.model group),
borrowerPartyReference (defined in BusinessEventParties.model group),
cashPayable,
comment (defined in AbstractLoanEvent complexType),
correctedEventIdentifier,
effectiveDate (defined in AbstractLoanServicingEvent complexType),
eventIdentifier (defined in AbstractLoanEvent complexType),
facilityFxRate (in lcFxRevaluation),
lcFxRate (in lcFxRevaluation),
legalActionReference (defined in AbstractLoanServicingEvent complexType),
lenderPartyReference (defined in LenderAndCashDetails.model group),
letterOfCreditReference (defined in AbstractLcEvent complexType),
parentEventIdentifier,
previousEventIdentifier
May be included in elements by substitutions (3):
lcNotification, loanBulkServicingNotification, loanLegalActionNotification
XML Source (see within schema source)
<xsd:element name="lcFxRevaluation" substitutionGroup="lcEventGroup" type="LcFxRevaluation"/>
