element <loanTradeFeeDue> (global)
Namespace:
http://www.fpml.org/FpML-5/confirmation
Type:
LoanTradeTransferFeeDue
Content:
complex, 10 elements
Subst.Gr:
substitutes for loanTradeEventGroup
Defined:
globally in fpml-loan-5-13.xsd; see XML source
Used:
never

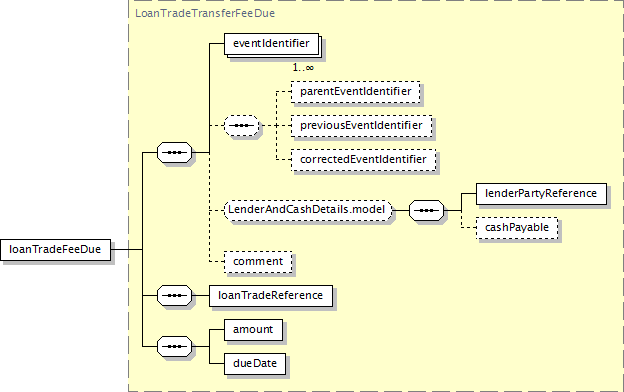

Component Diagram
XML Representation Summary
<loanTradeFeeDue>

Content:
eventIdentifier+, (parentEventIdentifier?, previousEventIdentifier?, correctedEventIdentifier?)?, (lenderPartyReference, cashPayable?)?, comment?, loanTradeReference, amount, dueDate
</loanTradeFeeDue>
Content model elements (10):
amount (in loanTradeFeeDue),
cashPayable,
comment (defined in AbstractLoanEvent complexType),
correctedEventIdentifier,
dueDate (in loanTradeFeeDue),
eventIdentifier (defined in AbstractLoanEvent complexType),
lenderPartyReference (defined in LenderAndCashDetails.model group),
loanTradeReference (defined in AbstractLoanTradeEvent complexType),
parentEventIdentifier,
previousEventIdentifier
May be included in elements by substitutions (1):
loanTradeNotification
XML Source (see within schema source)
<xsd:element name="loanTradeFeeDue" substitutionGroup="loanTradeEventGroup" type="LoanTradeTransferFeeDue"/>
