element <creditCurve> (global)
Namespace:
http://www.fpml.org/FpML-5/confirmation
Type:
CreditCurve
Content:
complex, 1 attribute, 10 elements
Subst.Gr:
substitutes for pricingStructure
Defined:
globally in fpml-mktenv-5-13.xsd; see XML source
Used:
never

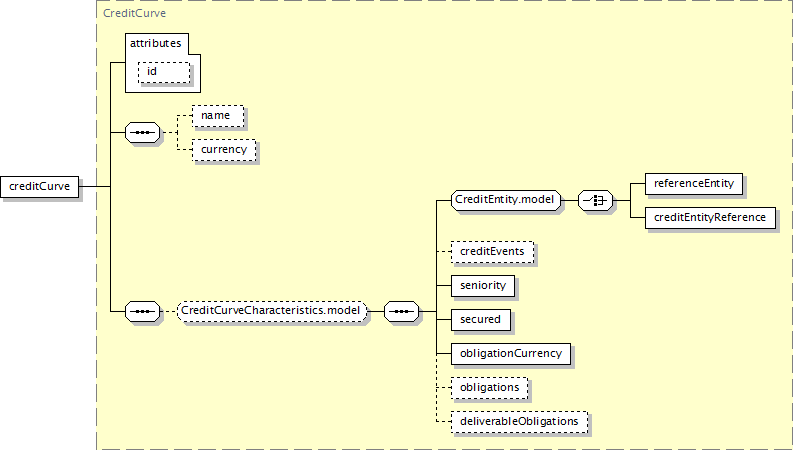

Component Diagram
XML Representation Summary
<creditCurve

id
 =
xsd:ID

>

Content:
name?, currency?, ((referenceEntity | creditEntityReference), creditEvents?, seniority, secured, obligationCurrency, obligations?, deliverableObligations?)?
</creditCurve>
Content model elements (10):
creditEntityReference,
creditEvents (in creditCurve),
currency (defined in PricingStructure complexType),
deliverableObligations (in creditCurve),
name (defined in PricingStructure complexType),
obligationCurrency,
obligations (in creditCurve),
referenceEntity (defined in CreditEntity.model group),
secured,
seniority (in creditCurve)
May be included in elements by substitutions (1):
market
XML Source (see within schema source)
<xsd:element name="creditCurve" substitutionGroup="pricingStructure" type="CreditCurve"/>
