element <eventStatusResponse> (global)
Namespace:
http://www.fpml.org/FpML-5/confirmation
Type:
EventStatusResponse
Content:
complex, 3 attributes, 9 elements
Defined:
globally in fpml-msg-5-13.xsd; see XML source
Used:
never

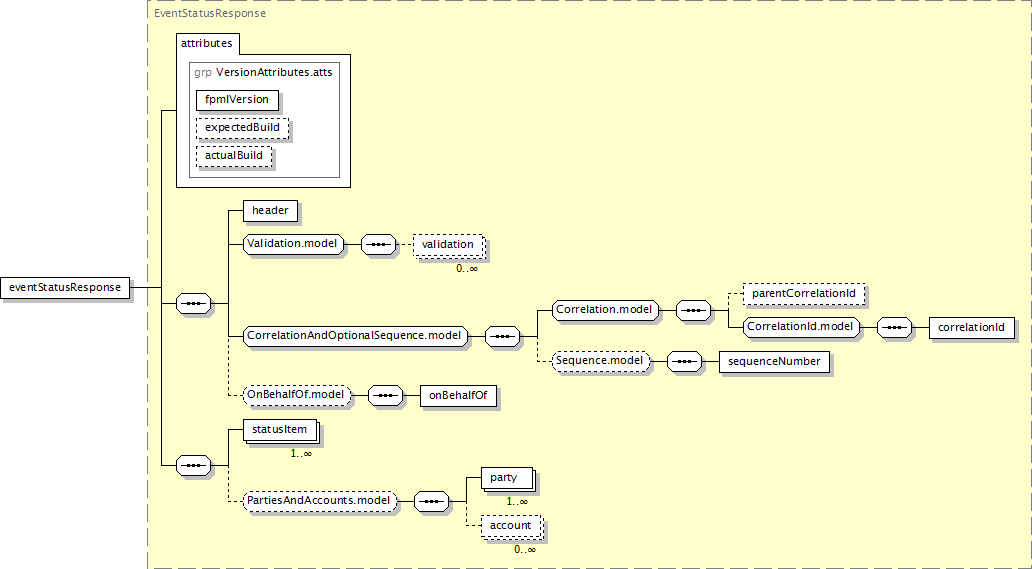

Component Diagram
XML Representation Summary
<eventStatusResponse

fpmlVersion
 =
xsd:token
expectedBuild
 =
xsd:positiveInteger
actualBuild
 =
"2"

>

Content:
header, validation*, parentCorrelationId?, correlationId, sequenceNumber?, onBehalfOf?, statusItem+, (party+, account*)?
</eventStatusResponse>
Content model elements (9):
account,
correlationId,
header (defined in ResponseMessage complexType),
onBehalfOf (defined in OnBehalfOf.model group),
parentCorrelationId,
party (defined in PartiesAndAccounts.model group),
sequenceNumber (defined in Sequence.model group),
statusItem,
validation
XML Source (see within schema source)
<xsd:element name="eventStatusResponse" type="EventStatusResponse"/>
