element <pricingStructureValuation> (global abstract)
Namespace:
http://www.fpml.org/FpML-5/confirmation
Type:
PricingStructureValuation
Content:
complex, 2 attributes, 7 elements
Abstract:
(may not be used directly in instance XML documents)
Subst.Gr:
substituted with 4 elements
Defined:
globally in fpml-riskdef-5-13.xsd; see XML source
Used:
at 5 locations

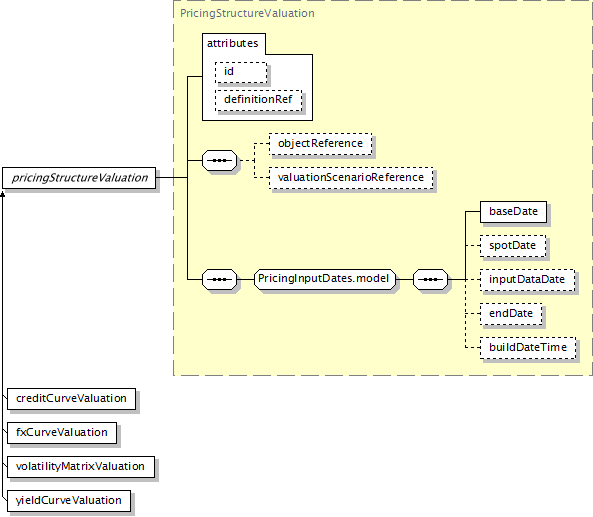

Component Diagram
XML Representation Summary
<pricingStructureValuation

id
 =
xsd:ID
definitionRef
 =
xsd:IDREF

>

Content:
objectReference?, valuationScenarioReference?, baseDate, spotDate?, inputDataDate?, endDate?, buildDateTime?
</pricingStructureValuation>
Content model elements (7):
baseDate,
buildDateTime,
endDate (defined in PricingInputDates.model group),
inputDataDate,
objectReference,
spotDate,
valuationScenarioReference (defined in Valuation complexType)
Included in content model of elements (1):
market
May be substituted with elements (4):
creditCurveValuation, fxCurveValuation, volatilityMatrixValuation, yieldCurveValuation
Known Usage Locations
XML Source (see within schema source)
<xsd:element abstract="true" name="pricingStructureValuation" type="PricingStructureValuation"/>
