element <routingAddress> (local)
Namespace:
http://www.fpml.org/FpML-5/confirmation
Type:
Address
Content:
complex, 5 elements
Defined:
locally within RoutingExplicitDetails.model group in fpml-shared-5-13.xsd; see XML source

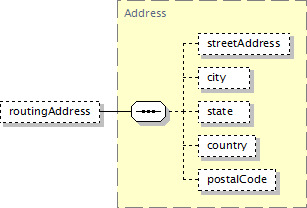

Component Diagram
XML Representation Summary
<routingAddress>

Content:
streetAddress?, city?, state?, country?, postalCode?
</routingAddress>
Content model elements (5):
city,
country (defined in Address complexType),
postalCode,
state,
streetAddress
Included in content model of elements (2):
routingExplicitDetails, routingIdsAndExplicitDetails
Annotation
A physical postal address via which a payment can be routed.
XML Source (w/o annotations (1); see within schema source)
<xsd:element minOccurs="0" name="routingAddress" type="Address"/>
