element <routingIdsAndExplicitDetails> (local)
Namespace:
http://www.fpml.org/FpML-5/confirmation
Type:
RoutingIdsAndExplicitDetails
Content:
complex, 5 elements
Defined:
locally within RoutingIdentification.model group in fpml-shared-5-13.xsd; see XML source

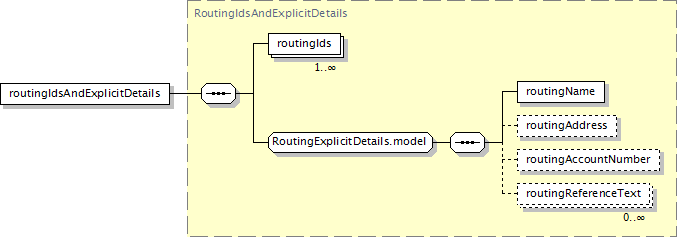

Component Diagram
XML Representation Summary
<routingIdsAndExplicitDetails>

Content:
routingIds+, routingName, routingAddress?, routingAccountNumber?, routingReferenceText*
</routingIdsAndExplicitDetails>
Content model elements (5):
routingAccountNumber,
routingAddress,
routingIds (in routingIdsAndExplicitDetails),
routingName,
routingReferenceText
Included in content model of elements (6):
beneficiary (defined in SettlementInstruction complexType),
beneficiary (in splitSettlement),
beneficiaryBank (defined in SettlementInstruction complexType),
beneficiaryBank (in splitSettlement),
correspondentInformation,
intermediaryInformation
Annotation
A combination of coded payment system identifiers and details for physical addressing for a party involved in the routing of a payment.
XML Source (w/o annotations (1); see within schema source)
<xsd:element name="routingIdsAndExplicitDetails" type="RoutingIdsAndExplicitDetails"/>
