element <ds:Reference> (global)
Namespace:
http://www.w3.org/2000/09/xmldsig#
Type:
ds:ReferenceType
Content:
complex, 3 attributes, 3 elements
Defined:
globally in xmldsig-core-schema.xsd; see XML source
Used:
at 2 locations

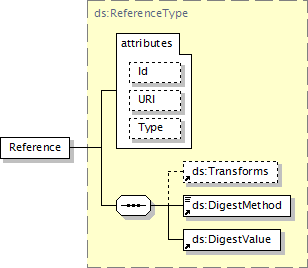

Component Diagram
XML Representation Summary
<ds:Reference

Id
 =
ID
URI
 =
anyURI
Type
 =
anyURI

>

Content:
ds:Transforms?, ds:DigestMethod, ds:DigestValue
</ds:Reference>
Content model elements (3):
ds:DigestMethod, ds:DigestValue, ds:Transforms
Included in content model of elements (2):
ds:Manifest, ds:SignedInfo
Known Usage Locations
XML Source (see within schema source)
<element name="Reference" type="ds:ReferenceType"/>
