element <newTrade> (local) | XML Schema Documentation

element <newTrade> (local)

Namespace:	http://www.fpml.org/FpML-5/recordkeeping
Type:	Trade
Content:	complex, 1 attribute, 13 elements
Defined:	locally within NewTrade.model group in fpml-business-events-5-13.xsd; see XML source

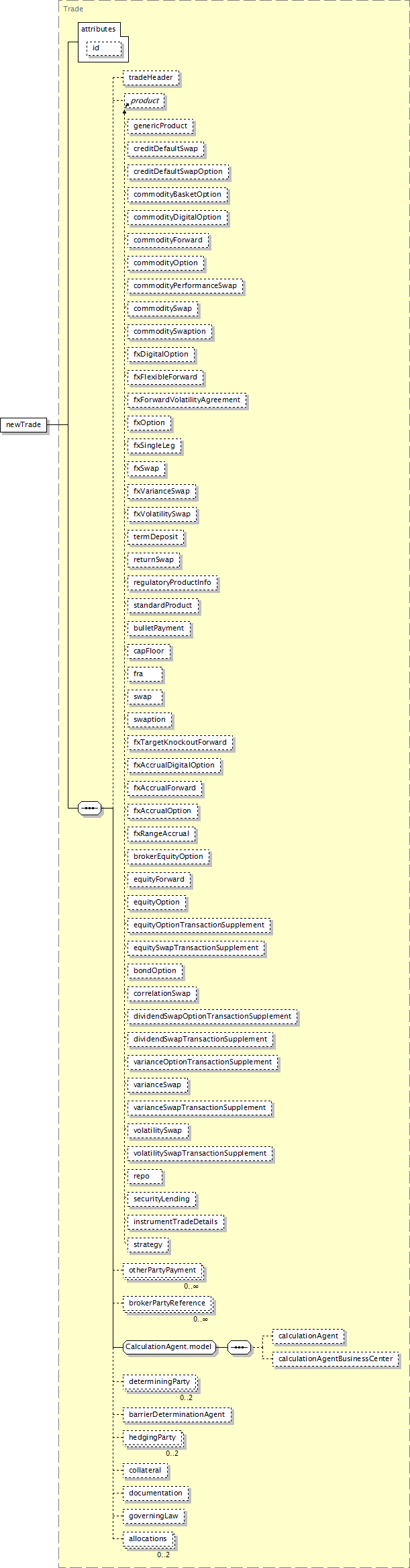

Component Diagram

XML Representation Summary

<newTrade

=

xsd:ID

>

Content:

tradeHeader?, product?, otherPartyPayment*, brokerPartyReference*, calculationAgent?, calculationAgentBusinessCenter?, determiningParty[0..2], barrierDeterminationAgent?, hedgingParty[0..2], collateral?, documentation?, governingLaw?, allocations[0..2]

</newTrade>

Content model elements (13):

barrierDeterminationAgent,

brokerPartyReference,

calculationAgent (defined in CalculationAgent.model group),

calculationAgentBusinessCenter,

collateral (defined in Trade complexType),

determiningParty,

otherPartyPayment,

Included in content model of elements (1):

May contain elements by substitutions (50):

bondOption, brokerEquityOption, bulletPayment, capFloor, commodityBasketOption, commodityDigitalOption, commodityForward, commodityOption, commodityPerformanceSwap, commoditySwap, commoditySwaption, correlationSwap, creditDefaultSwap, creditDefaultSwapOption, dividendSwapOptionTransactionSupplement, dividendSwapTransactionSupplement, equityForward, equityOption, equityOptionTransactionSupplement, equitySwapTransactionSupplement, fra, fxAccrualDigitalOption, fxAccrualForward, fxAccrualOption, fxDigitalOption, fxFlexibleForward, fxForwardVolatilityAgreement, fxOption, fxRangeAccrual, fxSingleLeg, fxSwap, fxTargetKnockoutForward, fxVarianceSwap, fxVolatilitySwap, genericProduct, instrumentTradeDetails, regulatoryProductInfo, repo, returnSwap, securityLending, standardProduct, strategy, swap, swaption, termDeposit, varianceOptionTransactionSupplement, varianceSwap, varianceSwapTransactionSupplement, volatilitySwap, volatilitySwapTransactionSupplement

Annotation

Indicates the new trade between the transferee and the remaining party.

XML Source (w/o annotations (1); see within schema source)

<xsd:element name="newTrade" type="Trade"/>
