element <termDeposit> (global)

Namespace:	http://www.fpml.org/FpML-5/recordkeeping
Type:	TermDeposit
Content:	complex, 1 attribute, 20 elements
Subst.Gr:	substitutes for product
Defined:	globally in fpml-fx-5-13.xsd; see XML source
Used:	never

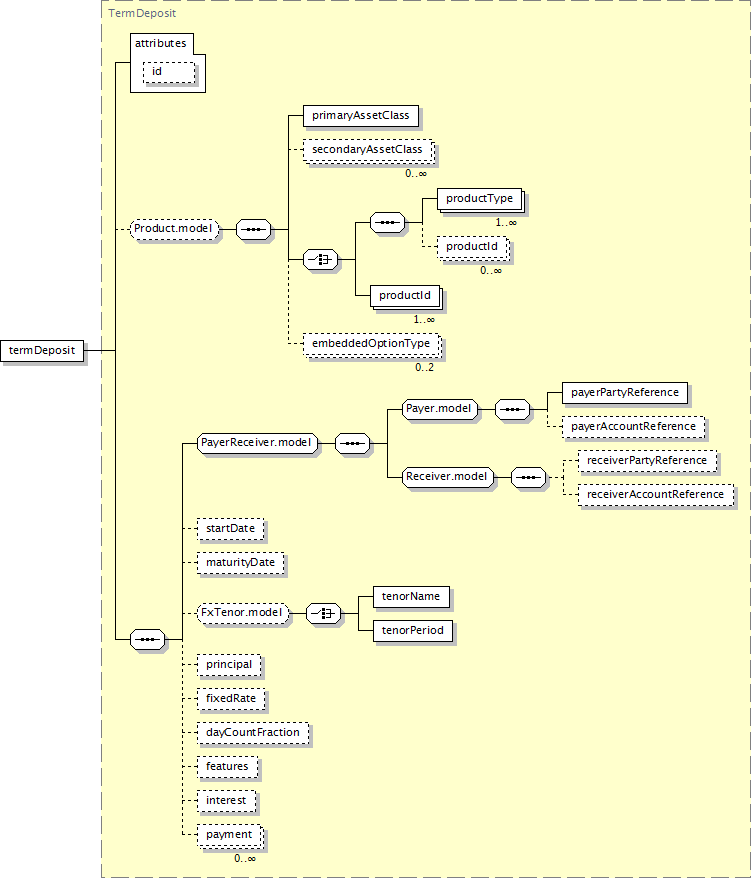

Component Diagram

XML Representation Summary

<termDeposit

xsd:ID

Content:

(primaryAssetClass, secondaryAssetClass*, ((productType+, productId*) | productId+), embeddedOptionType[0..2])?, payerPartyReference, payerAccountReference?, receiverPartyReference?, receiverAccountReference?, startDate?, maturityDate?, (tenorName | tenorPeriod)?, principal?, fixedRate?, dayCountFraction?, features?, interest?, payment*

</termDeposit>

Content model elements (20):

dayCountFraction (in termDeposit),

embeddedOptionType,

features (in termDeposit),

fixedRate (in termDeposit),

interest,

maturityDate (in termDeposit),

payerAccountReference,

payerPartyReference (defined in Payer.model group),

payment (in termDeposit),

primaryAssetClass (defined in Product.model group),

principal (in termDeposit),

productId (defined in Product.model group),

productType (defined in Product.model group),

receiverAccountReference,

receiverPartyReference,

secondaryAssetClass (defined in Product.model group),

startDate (in termDeposit),

tenorName,

tenorPeriod (defined in FxTenor.model group)

May be included in elements by substitutions (23):

feeTrade,

newTrade,

oldTrade (in change),

oldTrade (in novation),

originalTrade (defined in TradeChangeBase complexType),

originalTrade (in optionEvent),

originalTrade (in optionExercise),

originalTrade (in optionExpiry),

physicalSettlement (in noTouch),

physicalSettlement (in optionExercise),

physicalSettlement (in touch in optionEvent),

resultingTrade (defined in PhysicalSettlement complexType),

resultingTrade (defined in TradeChangeBase complexType),

strategy,

trade (defined in DataDocument complexType),

trade (defined in TradeValuationItem complexType),

trade (in affectedTransactions),

trade (in amendment),

trade (in change),

trade (in nonpublicExecutionReport),

trade (in nonpublicExecutionReportRetracted),

trade (in regulatoryDisclosure),

trade (in withdrawal)

Annotation

A term deposit product definition.

XML Source (w/o annotations (1); see within schema source)

<xsd:element name="termDeposit" substitutionGroup="product" type="TermDeposit"/>
