element <optionExpiry> (local)
Namespace:
http://www.fpml.org/FpML-5/recordkeeping
Type:
OptionExpiry
Content:
complex, 7 elements
Defined:
locally within OptionsEventsBase.model group in fpml-business-events-5-13.xsd; see XML source

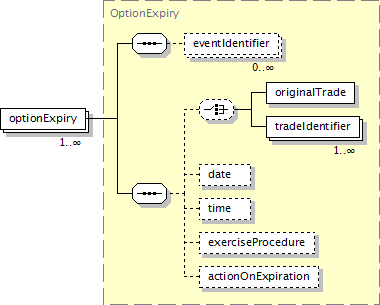

Component Diagram
XML Representation Summary
<optionExpiry>

Content:
eventIdentifier*, (originalTrade | tradeIdentifier+)?, date?, time?, exerciseProcedure?, actionOnExpiration?
</optionExpiry>
Content model elements (7):
actionOnExpiration,
date (in optionExpiry),
eventIdentifier (defined in AbstractEvent complexType),
exerciseProcedure (in optionExpiry),
originalTrade (in optionExpiry),
time (in optionExpiry),
tradeIdentifier (in optionExpiry)
Included in content model of elements (2):
nonpublicExecutionReport, nonpublicExecutionReportRetracted
Annotation
A structure describing an option expiring event (i.e. passing its last exercise time and becoming worthless.)
XML Source (w/o annotations (1); see within schema source)
<xsd:element maxOccurs="unbounded" name="optionExpiry" type="OptionExpiry"/>
