complexType "RequestConsent"

Namespace:	http://www.fpml.org/FpML-5/confirmation
Content:	complex, 3 attributes, 23 elements
Defined:	globally in fpml-confirmation-processes-5-2.xsd; see XML source
Includes:	definition of 1 element
Used:	at 1 location

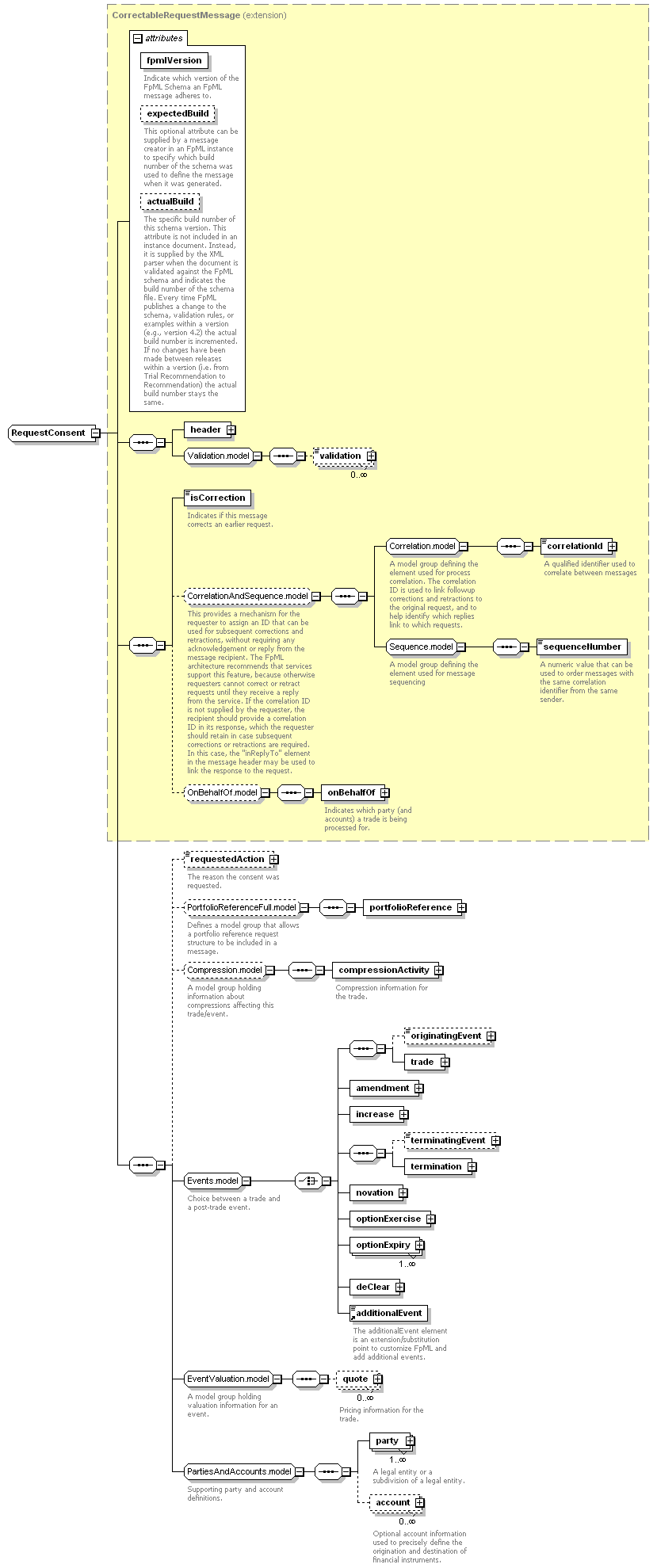

Content Model Diagram

XML Representation Summary

<...

fpmlVersion	=	xsd:token
expectedBuild	=	xsd:positiveInteger
actualBuild	=	"4"

Content:

</...>

Content Model Elements (23):

header (defined in RequestMessage complexType),

increase,

isCorrection (defined in CorrectableRequestMessage complexType),

novation,

onBehalfOf (defined in OnBehalfOf.model group),

optionExercise,

optionExpiry (defined in Events.model group),

originatingEvent (defined in Events.model group),

party,

portfolioReference (defined in PortfolioReferenceFull.model group),

quote (defined in EventValuation.model group),

requestedAction,

sequenceNumber (defined in Sequence.model group),

terminatingEvent (defined in Events.model group),

termination,

trade (defined in Events.model group),

validation

All Direct / Indirect Based Elements (1):

requestConsent

Known Usage Locations

As direct type of elements (1):
requestConsent

Type Definition Detail

Type Derivation Tree

Document (extension)

Message (extension)

RequestMessage (extension)

CorrectableRequestMessage (extension)

RequestConsent

XML Source (w/o annotations (1); see within schema source)

<xsd:complexType name="RequestConsent">

<xsd:complexContent>

<xsd:extension base="CorrectableRequestMessage">

<xsd:sequence>

<xsd:element minOccurs="0" name="requestedAction" type="RequestedAction"/>

<xsd:group minOccurs="0" ref="PortfolioReferenceFull.model"/>

<xsd:group minOccurs="0" ref="Compression.model"/>

<xsd:group ref="Events.model"/>

<xsd:group ref="EventValuation.model"/>

<xsd:group ref="PartiesAndAccounts.model"/>

</xsd:sequence>

</xsd:extension>

</xsd:complexContent>

</xsd:complexType>

Content Element Detail (all declarations; defined within this component only; 1/23)

requestedAction

Type:

RequestedAction, simple content

The reason the consent was requested.

Simple Content

xsd:normalizedString

maxLength:

255

XML Source (w/o annotations (1); see within schema source)

<xsd:element minOccurs="0" name="requestedAction" type="RequestedAction"/>
