complexType "Period"
Namespace:
http://www.fpml.org/FpML-5/confirmation
Content:
complex, 1 attribute, 2 elements
Defined:
globally in fpml-shared-5-2.xsd; see XML source
Includes:
definitions of 1 attribute, 2 elements
Used:
at 25 locations

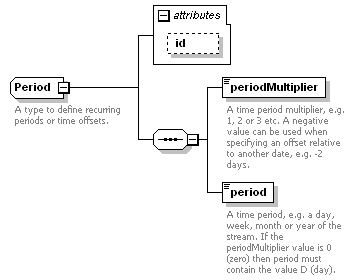

Content Model Diagram
XML Representation Summary
<...

id
 =
 xsd:ID
    >

Content:
 periodMultiplier, period
</...>
Content Model Elements (2):
period (defined in Period complexType), periodMultiplier (defined in Period complexType)
Known Direct Subtypes (1):
Offset
Known Indirect Subtypes (5):
AdjustedRelativeDateOffset, DateOffset, FxFixingDate, RelativeDateOffset, RelativeDates
All Direct / Indirect Based Elements (53):
cashSettlementValuationDate,
dateOffset,
deliveryDateRollConvention,
earliestExerciseDateTenor,
endTerm,
exerciseFrequency,
expirationDateOffset,
feePaymentDate (defined in ExerciseFeeSchedule complexType),
feePaymentDate (in exerciseFee),
firstObservationDateOffset,
fixingDateOffset,
fixingDates (in resetDates),
fxFixingDate,
gracePeriod,
indexTenor (defined in FloatingRateIndex.model group),
indexTenor (in forecastRateIndex),
indexTenor (in fra),
inflationLag,
initialFixingDate (in interestLegResetDates),
initialFixingDate (in resetDates),
lagDuration,
mandatoryEarlyTerminationDateTenor,
maximumMaturity,
offset,
paymentDate (in fixedPayment),
paymentDateOffset,
paymentDaysOffset (in paymentDates defined in InterestRateStream complexType),
paymentDaysOffset (in relativePaymentDates),
paymentFrequency (defined in BondCalculation.model group),
paymentFrequency (in deposit),
paymentFrequency (in periodicPayment),
paymentFrequency (in rateIndex),
paymentFrequency (in simpleCreditDefaultSwap),
paymentFrequency (in simpleIrSwap),
rateCutOffDaysOffset,
relativeDate (defined in AdjustableDatesOrRelativeDateOffset complexType),
relativeDate (defined in AdjustableOrRelativeDate complexType),
relativeDate (defined in Composite complexType),
relativeDate (in cashSettlementPaymentDate),
relativeDates (defined in AdjustableOrRelativeDates complexType),
relativeDates (defined in AdjustableRelativeOrPeriodicDates2 complexType),
relativeEffectiveDate,
relativeTerminationDate,
startTerm,
stepFrequency,
tenor (defined in TimeDimension complexType),
tenor (defined in TimeDimension complexType),
term (in deposit),
term (in rateIndex),
term (in simpleCreditDefaultSwap),
term (in simpleIrSwap),
varyingNotionalFixingDates,
varyingNotionalInterimExchangePaymentDates
Known Usage Locations
Annotation
A type to define recurring periods or time offsets.
XML Source (w/o annotations (3); see within schema source)
<xsd:complexType name="Period">
<xsd:sequence>
<xsd:element name="periodMultiplier" type="xsd:integer"/>
<xsd:element name="period" type="PeriodEnum"/>
</xsd:sequence>
<xsd:attribute name="id" type="xsd:ID"/>
</xsd:complexType>
Attribute Detail (all declarations; defined within this component only; 1/1)
id
Type:
xsd:ID, predefined
Use:
optional
XML Source (see within schema source)
<xsd:attribute name="id" type="xsd:ID"/>
Content Element Detail (all declarations; defined within this component only; 2/2)
period
Type:
PeriodEnum, simple content
A time period, e.g. a day, week, month or year of the stream. If the periodMultiplier value is 0 (zero) then period must contain the value D (day).
Simple Content
enumeration of xsd:token
Enumeration:
"D"
 -
 Day.
See:  http://www.FpML.org
"W"
 -
 Week.
See:  http://www.FpML.org
"M"
 -
 Month.
See:  http://www.FpML.org
"Y"
 -
 Year.
See:  http://www.FpML.org
XML Source (w/o annotations (1); see within schema source)
<xsd:element name="period" type="PeriodEnum"/>
periodMultiplier
Type:
xsd:integer, predefined, simple content
A time period multiplier, e.g. 1, 2 or 3 etc. A negative value can be used when specifying an offset relative to another date, e.g. -2 days.
XML Source (w/o annotations (1); see within schema source)
<xsd:element name="periodMultiplier" type="xsd:integer"/>
