complexType "Mortgage"
Namespace:
http://www.fpml.org/FpML-5/reporting
Content:
complex, 1 attribute, 20 elements
Defined:
globally in fpml-asset-5-3.xsd; see XML source
Includes:
definitions of 6 elements
Used:
at 1 location

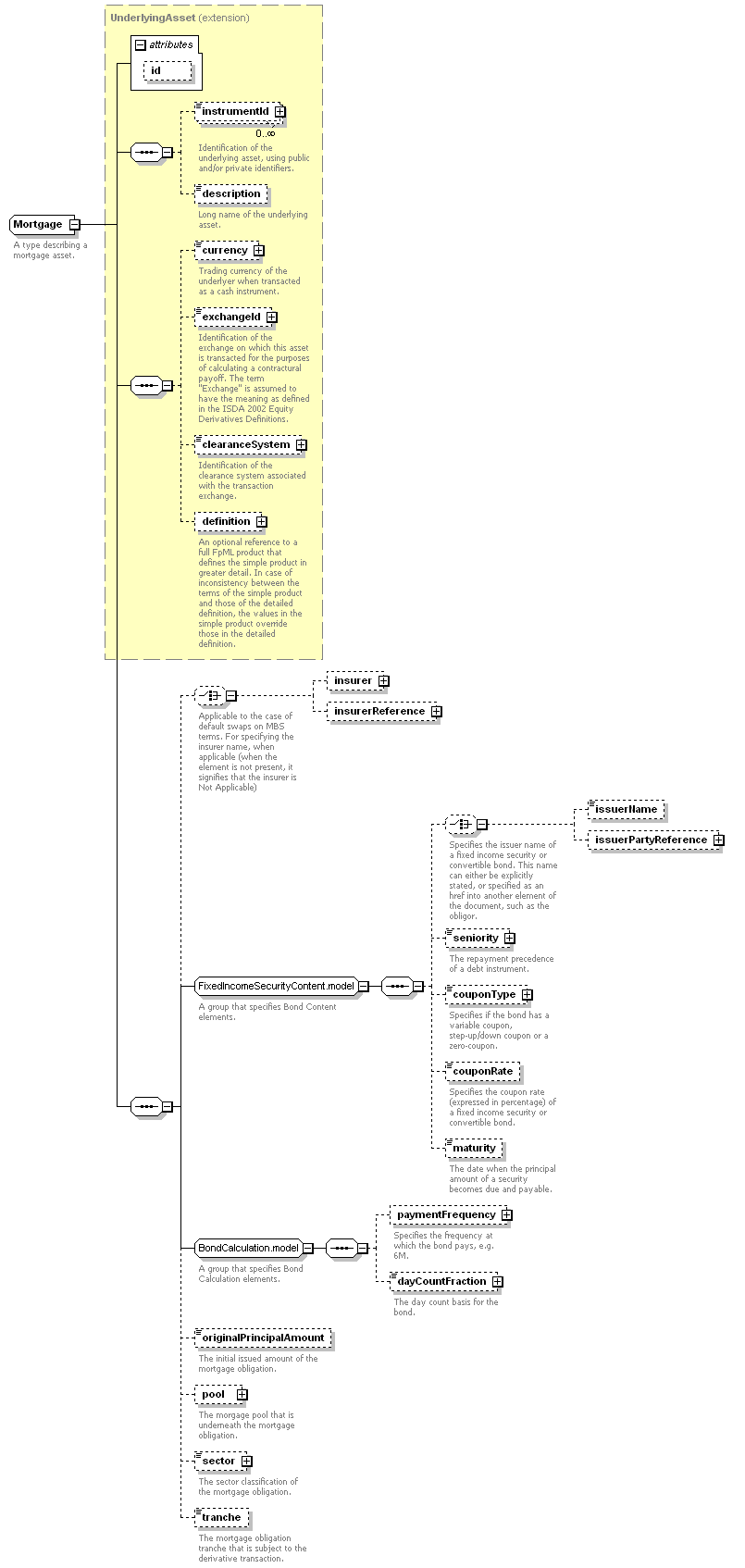

Content Model Diagram
XML Representation Summary
<...

id
 =
 xsd:ID
    >

Content:
 instrumentId*, description?, currency?, exchangeId?, clearanceSystem?, definition?, (insurer? | insurerReference?)?, (issuerName? | issuerPartyReference?)?, seniority?, couponType?, couponRate?, maturity?, paymentFrequency?, dayCountFraction?, originalPrincipalAmount?, pool?, sector?, tranche?
</...>
Content Model Elements (20):
clearanceSystem (defined in UnderlyingAsset complexType),
couponRate (defined in FixedIncomeSecurityContent.model group),
couponType,
currency (defined in UnderlyingAsset complexType),
dayCountFraction (defined in BondCalculation.model group),
definition (defined in UnderlyingAsset complexType),
description (defined in IdentifiedAsset complexType),
exchangeId (defined in UnderlyingAsset complexType),
instrumentId (defined in IdentifiedAsset complexType),
insurer,
insurerReference,
issuerName,
issuerPartyReference (defined in FixedIncomeSecurityContent.model group),
maturity (defined in FixedIncomeSecurityContent.model group),
originalPrincipalAmount,
paymentFrequency (defined in BondCalculation.model group),
pool,
sector (in mortgage),
seniority (defined in FixedIncomeSecurityContent.model group),
tranche (in mortgage)
All Direct / Indirect Based Elements (1):
mortgage
Known Usage Locations
Annotation
A type describing a mortgage asset.
Type Definition Detail
Type Derivation Tree
Asset (extension)
  IdentifiedAsset (extension)
      UnderlyingAsset (extension)
          Mortgage
XML Source (w/o annotations (6); see within schema source)
<xsd:complexType name="Mortgage">
<xsd:complexContent>
<xsd:extension base="UnderlyingAsset">
<xsd:sequence>
<xsd:choice minOccurs="0">
<xsd:element minOccurs="0" name="insurer" type="LegalEntity"/>
<xsd:element minOccurs="0" name="insurerReference" type="LegalEntityReference"/>
</xsd:choice>
<xsd:group ref="FixedIncomeSecurityContent.model"/>
<xsd:group ref="BondCalculation.model"/>
<xsd:element minOccurs="0" name="originalPrincipalAmount" type="xsd:decimal"/>
<xsd:element minOccurs="0" name="pool" type="AssetPool"/>
<xsd:element minOccurs="0" name="sector" type="MortgageSector"/>
<xsd:element minOccurs="0" name="tranche" type="xsd:token"/>
</xsd:sequence>
</xsd:extension>
</xsd:complexContent>
</xsd:complexType>
Content Element Detail (all declarations; defined within this component only; 6/20)
insurer
Type:
LegalEntity, complex content
XML Source (see within schema source)
<xsd:element minOccurs="0" name="insurer" type="LegalEntity"/>
insurerReference
Type:
LegalEntityReference, empty content
XML Source (see within schema source)
<xsd:element minOccurs="0" name="insurerReference" type="LegalEntityReference"/>
originalPrincipalAmount
Type:
xsd:decimal, predefined, simple content
The initial issued amount of the mortgage obligation.
XML Source (w/o annotations (1); see within schema source)
<xsd:element minOccurs="0" name="originalPrincipalAmount" type="xsd:decimal"/>
pool
Type:
AssetPool, complex content
The morgage pool that is underneath the mortgage obligation.
XML Source (w/o annotations (1); see within schema source)
<xsd:element minOccurs="0" name="pool" type="AssetPool"/>
sector
Type:
MortgageSector, simple content
The sector classification of the mortgage obligation.
Simple Content
xsd:normalizedString
maxLength:
 255
XML Source (w/o annotations (1); see within schema source)
<xsd:element minOccurs="0" name="sector" type="MortgageSector"/>
tranche
Type:
xsd:token, predefined, simple content
The mortgage obligation tranche that is subject to the derivative transaction.
XML Source (w/o annotations (1); see within schema source)
<xsd:element minOccurs="0" name="tranche" type="xsd:token"/>
