Namespace: |
|
Content: |
complex, 17 elements |
Defined: |
globally in fpml-business-events-5-3.xsd; see XML source |
Includes: |
definitions of 17 elements |
Used: |
at 1 location |

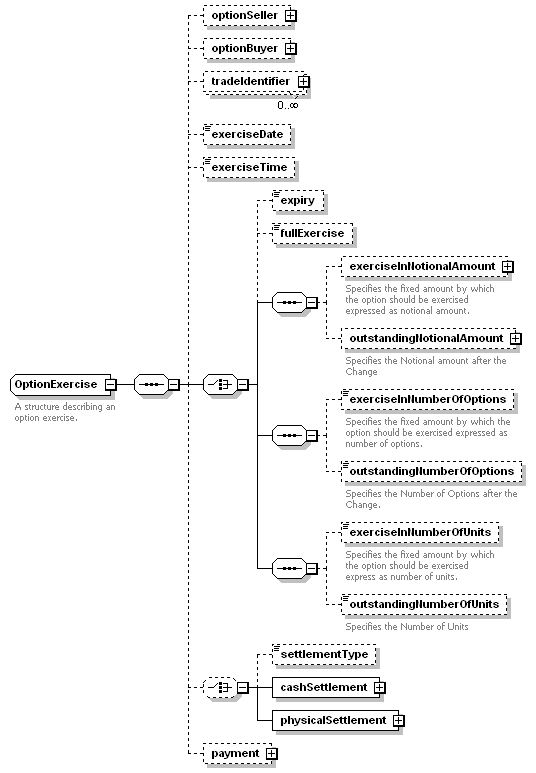

XML Representation Summary |
|||||
<...> | |||||
|
|||||
</...> |
<xsd:complexType name="OptionExercise"> <xsd:sequence> <xsd:element maxOccurs="unbounded" minOccurs="0" name="tradeIdentifier" type="PartyTradeIdentifier"/> <xsd:choice> <xsd:sequence> </xsd:sequence> <xsd:sequence> </xsd:sequence> <xsd:sequence> </xsd:sequence> </xsd:choice> <xsd:choice minOccurs="0"> <!--plugged GEM/CICTO proposal here (InstrumentTrade) --> </xsd:element> </xsd:choice> </xsd:sequence> </xsd:complexType> |
Type: |
SimplePayment, complex content |
<xsd:element name="cashSettlement" type="SimplePayment"/> |
Type: |
xsd:date, predefined, simple content |
<xsd:element minOccurs="0" name="exerciseDate" type="xsd:date"/> |
Type: |
Money, complex content |
<xsd:element minOccurs="0" name="exerciseInNotionalAmount" type="Money"/> |
Type: |
xsd:decimal, predefined, simple content |
<xsd:element minOccurs="0" name="exerciseInNumberOfOptions" type="xsd:decimal"/> |
Type: |
xsd:decimal, predefined, simple content |
<xsd:element minOccurs="0" name="exerciseInNumberOfUnits" type="xsd:decimal"/> |
Type: |
xsd:time, predefined, simple content |
<xsd:element minOccurs="0" name="exerciseTime" type="xsd:time"/> |
Type: |
xsd:boolean, predefined, simple content |
<xsd:element minOccurs="0" name="expiry" type="xsd:boolean"/> |
Type: |
xsd:boolean, predefined, simple content |
<xsd:element minOccurs="0" name="fullExercise" type="xsd:boolean"/> |
Type: |
PartyReference, empty content |
<xsd:element minOccurs="0" name="optionBuyer" type="PartyReference"/> |
Type: |
PartyReference, empty content |
<xsd:element minOccurs="0" name="optionSeller" type="PartyReference"/> |
Type: |
Money, complex content |
<xsd:element minOccurs="0" name="outstandingNotionalAmount" type="Money"/> |
Type: |
xsd:decimal, predefined, simple content |
<xsd:element minOccurs="0" name="outstandingNumberOfOptions" type="xsd:decimal"/> |
Type: |
xsd:decimal, predefined, simple content |
<xsd:element minOccurs="0" name="outstandingNumberOfUnits" type="xsd:decimal"/> |
Type: |
NonNegativePayment, complex content |
<xsd:element minOccurs="0" name="payment" type="NonNegativePayment"/> |
Type: |
PhysicalSettlement, complex content |
<xsd:element name="physicalSettlement" type="PhysicalSettlement"> <!--plugged GEM/CICTO proposal here (InstrumentTrade) --> </xsd:element> |
Type: |
SettlementTypeEnum, simple content |
("Cash" | "Physical") | "Election" |
<xsd:element minOccurs="0" name="settlementType" type="SettlementTypeEnum"/> |
Type: |
PartyTradeIdentifier, complex content |
<xsd:element maxOccurs="unbounded" minOccurs="0" name="tradeIdentifier" type="PartyTradeIdentifier"/> |
